Auto Open Heat Press

▶ Model No.: XS-15/ XS-20/ XS-24
▶ Machine Type: Auto & Manual Mode Switch, Fully Threadability
▶ Platen Size: 15"x15"(38x38cm)/ 16"x20"(40x50cm)/ 16"x24"(40x60cm)
▶ Pressure Value: 0-8
▶ Controller: GY-13 Touchscreen Panel, Store 3 Settings
▶ Printable Articles: Up to 20mm Thickness
▶ Voltage: 120V/ 220V
▶ Power: 15:1.5KW/1.8KW; 20&24:1.6KW/1.8KW
▶ Opening Anglel:  35 degree              >>

▶ Model No.: MODEL-X15/ MODEL-X20
▶ Machine Type: Full Automatic, Slide-out Under Plate
▶ Platen Size: 15"x15"(38x38cm)/ 16"x20"(40x50cm)
▶ Maximum Temp.: 230℃
▶ Power: 1.6KW/ 1.8KW
▶ Voltage: 120V/ 220V
▶ Certification: CE Approval
▶ Gross Weight: 39KG / 46KG
▶ Carton Size:  65x52x50cm / 75x52x50cm

▶ Model No.: RHP-15MS-D/RHP-15MS-D-V2
▶ Machine Type: Dual Heat Platen, Auto Open, Fully Threadability
▶ Platen Size: 15"x15"(38x38cm)
▶ Controller: GY-06 Digital Time & Temp.Control &TC4S-R1TC Digital Time & Temp. Control
▶ Printable Articles: Up to 15mm Thickness
▶ Opening Angle: 35 degrees
▶ Voltage: 120V/ 220V
▶  Power: 3KW/3.6KW
▶  Time Range: 1-999 sec
▶  Maximum Temp: 225℃
▶  Packing Size: 93x55x67cm
▶  Net Weight :52kg
▶  Gross Weight: 62.5kg

▶ Model No.: RHP-15MS/RHP-20MS/RHP-24MS
▶ Machine Type: Auto Release, Fully Threadability
▶ Platen Size: 15"x15"/16"x20"/16"x24"
▶ Controller: GY-06 Digital Time & Temp.Control
▶ Printable Articles: Up to 20mm Thickness
▶ Opening Angle: 35 degrees
▶ Voltage: 120V/ 220V
▶  Power: 15: 1.5KW/ 1.8KW; 20&24: 1.6KW/ 1.8KW
▶  Time Range: 1-999 sec
▶  Maximum Temp: 225℃
▶  Packing Size: 94.5x52x63.5cm（RHP-24MS）
▶  Net Weight :53.1kg（RHP-24MS）
▶  Gross Weight: 65kg（RHP-24MS）

▶ Model No.: MODEL-A15/ MODEL-A20
▶ Machine Type: Auto Open, Slide-out Under Plate
▶ Platen Size: 15"x15"(38x38cm)/ 16"x20"(40x50cm)
▶ Pressure: 0-10
▶ Power: 1.6KW-1.8KW
▶ Voltage: 120V/ 220V, Single-phase
▶ Certification: CE Approval
▶ Gross Weight: 40KG/ 50KG
▶ Carton Size:  65x51x51cm/ 78x54x55cm

▶ Model No.: STM-40/ STM-48/ STM-55
▶ Machine Type: Auto Release, Clamshell
▶ Platen Size: 32"x40"/ 40"x48"/ 40"x55"
▶ Under Plate: Draw-out
▶ Controller: GY-06 Digital Time & Temp. Control
▶ Printable Articles: Up to 20mm Thickness
▶ Gas Spring Control: Yes
▶ Voltage: 220V 1phase/ 220V 3phase/ 380V 3phase
▶ Power: 5.1KW/ 7.5KW/ 9KW

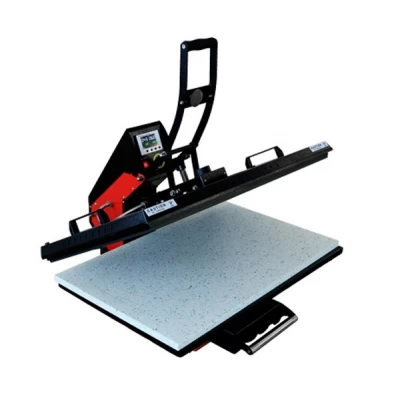

▶ Model No.: MAG-32/ MAG-40
▶ Machine Type: Auto Release, Large Size
▶ Platen Size: 24''x32''/ 24''x40'' (60x80cm/ 60x100cm)
▶ Under Plate: Draw-out & Quick Exchangeable
▶ Controller: GY-06 Digital Time & Temp. Control
▶ Printable Articles: Up to 30mm Thickness
▶ Gas Spring Control: Yes
▶ Voltage: 220V
▶ Packing Size: 121x112x97cm for MAG-40
▶ Gross Weight: 216kg for MAG-40

▶ Model No.: SENKO 30
▶ Machine Type: Auto Release, Large Size
▶ Platen Size: 20''x32'' (50x80cm)
▶ Under Plate: Draw-out & Quick Exchangeable
▶ Controller: GY-04 Digital Time & Temp. Control
▶ Printable Articles: Up to 8mm Thickness
▶ Gas Spring Control: Yes
▶ Voltage: 120V/ 220V
▶ Power: 2.4KW/ 3.6KW
▶ Wooden Packing Size: 105x97x95cm
▶ Net/Gross Wetght: 110kg/ 163kg

▶ Model No.: LZP-40-DH
▶ Machine Type: Auto Open, Dual Heat Platen
▶ Platen Size: 100x25cm
▶ Controller: 2 x GY-06 Digital Time & Temp. Control
▶ Feeding Device Suitable for: 12/20/25mm width
▶ Printable Articles: up to 20mm
▶ Gas Spring: 2 x Ø28*195MM*140KG
▶ Carton Size: 120x95x61cm + 120x68x70cm
▶ Gross Weight: 168KG+100KG

▶ Model No.: SENKO-15A/ SENKO-20A
▶ Machine Type: Auto Release, Clamshell
▶ Platen Size: 15"x15"(38x38cm)/ 16"*x20"(40x50cm)
▶ Under Plate: Slide-out Press Bed
▶ Voltage: 120V/ 220V
▶ Power: 1.6KW/ 1.8KW
▶ Time Range: 0-999 sec.
▶ Maximum Temp: 225 C
▶ Packing Size: 89x54x75cm/ 90x55x76cm
▶ Gross Weight: 57kg/ 65kg

▶ Model No.: E-15S/ E-20S
▶ Machine Type: Full Auto, Slide-out Under Plate
▶ Platen Size: 15"x15" (38x38cm)/ 16"x20" (40x50cm)
▶ Controller: GY-08 controller with Dual time setting
▶ Power: 1.6KW-1.8KW
▶ Voltage: 110V/ 220V
▶ Gross Weight: 66kg/ 70kg
▶ Packing Size: 90x57x66cm/ 90x57x66cm
▶ Certification: CE Approval

▶ Model No.: COS-15MS/ COS-20MS
▶ Machine Type: Auto Release, Detachable Electric Box
▶ Platen Size: 15"x15"/ 16"x20" (38x38cm/ 40x50cm)
▶ Under Plate: Exchangeable
▶ Controller: GY-08M Digital Time & Temp. Control
▶ Opening Angle: 50 degree
▶ Gas Spring Control: Yes
▶ Voltage: 110V/ 220V
▶ Power: 1600W/ 1800W
▶ Carton Size: 90x55x60cm
▶ Gross Weight: 63Kg for COS-20MS

▶ Model No.: TC-15/ TC-20
▶ Machine Type: Auto Release, Detachable Electric Box
▶ Platen Size: 15"x15"/ 16"x20" (38x38cm/ 40x50cm)
▶ Under Plate: Exchangeable
▶ Controller: GY-06 Digital Time & Temp. Control
▶ Printable Articles: Up to 5mm Thickness
▶ Opening Angle: 50 degree
▶ Gas Spring Control: Yes
▶ Voltage: 110V/ 220V
▶ Power: 1600W/ 1800W
▶ Carton Size: 93x54x60cm/91x55x59cm
▶ Gross Weight: 49kg/56kg

▶ Model No.: MAX-15CLAM-P/ MAX-20CLAM-P
▶ Machine Type: Auto Release, Pressure Thread Counter
▶ Platen Size: 15"x15"/16"x20" (38x38cm/ 40x50cm)
▶ Under Plate: Exchangeable
▶ Controller: GY-06 Digital Time & Temp. Control
▶ Printable Articles: Up to 6mm Thickness
▶ Opening Angle: 45 degrees
▶ Pressure: Digital thread Counter
▶ Voltage: 120V/ 220V
▶ Power: 1750W/ 1800W
▶ Gross Weight: 43kg/ 56kg
▶ Carton Size:91x54x58cm/ 91x54x58cm

▶ Model No.: MAX-15CLAM/ MAX-20CLAM
▶ Machine Type: Auto Release, Clamshell
▶ Platen Size: 15"x15"/16"x20"
▶ Under Plate: Exchangeable
▶ Controller: GY-06 Digital Time & Temp. Control
▶ Printable Articles: Up to 5mm Thickness
▶ Opening Angle: 50 degrees
▶ Gas Spring Control: Yes
▶ Voltage: 120V/ 220V
▶ Power: 1750W/ 1800W                    >>

▶ Model No.: MAX-15HOVER/ MAX-20HOVER
▶ Platen Size: 15''x15''/ 16''x20'' (38x38cm/ 40x50cm)
▶ Controller: GY-06 Digital Time & Temp.Control
▶ Max. Hover Space: Upto 6mm for DTF Curing
▶ Printable Articles: Up to 5mm Thickness
▶ Opening Angle: 50 degrees
▶ Voltage: 120V/ 220V
▶ Power: 15: 1.5KW/ 1.8KW; 20: 1.6KW/ 1.8KW
▶ Packing Size: 92x54x60cm/ 91x56x59cm
▶ Gross Weight: 47kg/ 54kg

▶ Model No.: SHP-15LP4MS/ SHP-20LP4MS/ SHP-24LP4MS
▶ Platen Size: 15"x15"/16"x20"/16"x24"
▶ Machine Type.: Auto Release, Draw-out
▶ Controller: GY-05N Digital Controller
▶ Voltage: 120V/ 220V
▶ Power: 1750W/ 1800W
▶ Opening Angle: 50 degrees
▶ Packing Size: 78x48x57cm/ 80x63x55cm/ 83x74x54cm
▶ Gross Weight: 44kg/ 56kg/ 59kg

▶ Model No.: SHP-15LP2MS/ SHP-20LP2MS/ SHP-24LP2MS
▶ Platen Size: 15"x15"/16"x20"/16"x24"
▶ Under Plate: Draw-out
▶ Controller: GY-04 Digital Time & Temp. Control
▶ Voltage: 120V/ 220V
▶ Power: 15: 1.5KW/ 1.8KW; 20/24: 1.6KW/ 1.8KW
▶ Temperature Accuracy: ±0.5%
▶ Packing Size: 76x47x51cm/ 77x60x56cm/ 77x71x58cm
▶ Gross Weight: 28kg/ 39kg/ 49kg

▶ Model No.: TC-15/ TC-20
▶ Machine Type: Auto Release, Detachable Electric Box
▶ Platen Size: 15"x15"/ 16"x20" (38x38cm/ 40x50cm)
▶ Under Plate: Exchangeable
▶ Controller: GY-06 Digital Time & Temp. Control
▶ Printable Articles: Up to 5mm Thickness
▶ Opening Angle: 50 degree
▶ Gas Spring Control: Yes
▶ Voltage: 110V/ 220V
▶ Power: 1600W/ 1800W
▶ Carton Size: 93x54x60cm/91x55x59cm
▶ Gross Weight: 49kg/56kg

▶ Model No.: UHP-15MS/ UHP-20MS/ UHP-24MS
▶ Machine Type: Auto Open, Draw-out
▶ Platen Size: 15"x15"/ 16"x20"/ 16"x24"
▶ Under Plate: Slide-out Press Bed
▶ Voltage: 220V/ 110V
▶ Power: 1800W/ 1600W
▶ Temperature Range: 0-255 Degrees
▶ Time Range: 0-999 Seconds
▶ Gross Weight: 48kg
▶ Package Size: 91x40x50cm

▶ Model No.: BP-10
▶ Machine Type: Auto Release, Clamshell
▶ Platen Size: 13x18cm
▶ Under Plate: Adjustable Ball Cradle Holder
▶ Controller: GY-06 Digital Time & Temp. Control
▶ Printable Articles: Synthetic Leather Sports Ball
▶ Gas Spring Control: 35kg*2pc
▶ Voltage: 220V /110V
▶ Print Ball Size: Round ball: Φ18-25cm

▶ Model No.: NMAX-200
▶ Machine Type: 2-in-1, Auto Open
▶ Platen Size: 15x15cm & Cap Heat Platen
▶ Under Plate: 15x15cm & Cap Base Plate
▶ Controller: GY-06 Digital Time & Temp. Control
▶ Voltage: 120v/ 220v
▶ Power: 500-1000W
▶ Gross Weight: 35kg
▶ Carton Size: 67x40x59cm

▶ Model No.: MAX-CAP2-100B
▶ Machine Type: Dual Heat Platen, Auto Open
▶ Platen Size: 5.9''x5.9'' (15x15cm)
▶ Feature: Designed for Leather Patch Heat Transfer
▶ Voltage: 120v/ 220v
▶ Power: 700-1300W
▶ Gross Weight: 28kg
▶ Carton Size: 65x32x70cm

▶ Model No.: MAX-CAP2
▶ Usage: For Pressing Leather Patches
▶ Automatic Grade: Auto Release
▶ Color: Red & Black
▶ Voltage: 120v/ 220v
▶ Power: 700-1300W
▶ Gross Weight: 28kg
▶ Carton Size: 65x32x70cm

▶ Model No.: SENKO 20
▶ Machine Type: Auto Release, Clamshell
▶ Platen Size: 16"x20" (40x50cm)
▶ Under Plate: Draw-out & Exchangeable
▶ Controller: GY-04 Digital Time & Temp. Control
▶ Printable Articles: Up to 8mm Thickness
▶ Gas Spring Control: Yes
▶ Voltage: 120V/ 220V
▶ Power: 1.6KW/ 1.8KW
▶ Packing Size: 102x59x83cm
▶ Net/Gross Wetght: 76kg/ 84kg

▶ Model No.: SHP-15LP4MS/ SHP-20LP4MS/ SHP-24LP4MS
▶ Platen Size: 15"x15"/16"x20"/16"x24"
▶ Machine Type.: Auto Release, Draw-out
▶ Controller: GY-05N Digital Controller
▶ Voltage: 120V/ 220V
▶ Power: 1750W/ 1800W
▶ Opening Angle: 50 degrees
▶ Packing Size: 78x48x57cm/ 80x63x55cm/ 83x74x54cm
▶ Gross Weight: 44kg/ 56kg/ 59kg

▶ Model No.: SHP-15LP3MS/ SHP-20LP3MS/ SHP-20LP3MS
▶ Machine Type: Auto Release, Clamshell
▶ Platen Size: 15"x15"/16"x20"/16"x24" (38x38cm/ 40x50cm/ 40x60cm)
▶ Controller: GY-05 Digital Time & Temp. Control
▶ Printable Articles: Up to 20mm Thickness
▶ Voltage: 120V/ 220V
▶ Power: 1750W/ 1800W
▶ Packing Size: 79x49x58cm
▶ Gross Weight: 28kg
