Multifunctional Heat Press Machine

GIZMIX Eco-Friendly DTF Paper Sheets, available in A4 (8.3"×11.7") and A3 (11.7"×16.6") sizes and sold per sheet, are crafted from 100% recyclable, biodegradable plant-based fibers. They feature a high ink-loading layer for vibrant prints, instant peel for workflow efficiency, and a matte print surface for easy identification. Ideal for businesses like manufacturers and print shops, these sheets balance sustainability, quality, and operational efficiency.

Material: High-quality, poreless silicone
Thickness: 0.85 cm (approx. 0.33 inches)
Size Options:15"x15" (38 x 38 cm)、16"x20" (40 x 50 cm)、16"x24" (40 x 60 cm)
Maximum Temperature Resistance: Up to 500°C (937°F)
Weight: Varies by size
Compatibility: Suitable for use with most heat press machines
Cleaning: Waterproof, easy to wash with water
Durability: Will not expand or deform even under extreme temperatures
Sides: Double-sided (both sides have the same material and texture)
Applications: Heat transfer vinyl (HTV), sublimation, pressing, ironing, DIY projects, and more
Storage: Flexible and can be rolled for easy storage and portability

GIZMIX DTF Film Sheets deliver instant peel convenience and vivid, crisp prints for direct-to-film projects. Available in A4 (8.3"x11.7") and A3 (11.7"x16.6") sizes with 100 sheets per pack, these user-friendly sheets feature a high ink-loading layer for rich colors and a matte print side for easy identification. Ideal for hobbyists, small businesses, and crafters, they simplify DTF workflows while ensuring professional results—no waiting, no rubbing, just stunning prints every time.

Model No.: NCH-400
Machine Type: Multifunctional with Slide-Out Drawer
Heat Platen Size: 23x33cm
Attachments: 12oz - 30oz Tumbler Attachments, Hat Attachments, and Plate Attachments
Temperature Control: Digital
Voltage: 120V/ 220V
Power Rating: 800W / 8 Amps
Maximum Temperature: 400°F
Timer Range: 0-999 seconds
Shipping Weight: 20.8 lbs
Packing Size: 16.1" x 15.3" x 12.7"

Model No.: NCH-100
Machine Type: Clamshell with Slide-Out Drawer
Heat Platen Size: 13" x 9" Landscape
Machine Size: 13.4" x 18.9" x 15.6"
Temperature Control: Digital
Timer Start: Automatic
Voltage: 120V/ 220V
Power Rating: 800W / 8 Amps
Maximum Temperature: 400°F
Timer Range: 0-999 seconds
Shipping Weight: 57 lbs
Packing Size: 21" x 17.1" x 20.8"

Platen Size: 16"x20" (40x50 cm)
Workstations: 6 rotating, interchangeable platens
Under Plate: Exchangeable threadable platens
Controller: PLC Digital Time & Temperature Control
Air Compressor Required: Yes, 0.6MPA
Voltage: 220V 3phase/ 380V 3phase
Power: 8.5KW
Temperature Range: 0-225°C
Time Range: 0-999 seconds
Packing Size: 168x168x151 cm
Gross Weight: 710KG (Wooden Packaging)

▶Max working width: 54"(1375mm)
▶Max temperature: 392℉(200℃)
▶Dia of drum: 9.8"(250mm)
▶Heating elements: 3
▶Power: 13.5KW
▶Voltage: 220V/3 phase & 380V/3 phase
▶Heating media: Thermal Oil
▶Digital display of temperature: Yes
▶Number of mandrels included: 6 mandrels, 3 feed, 3 take-up

▶ Machine Type: Pnuematic, Dual heating, Laser Positioning
▶ Platen Size: 15x15cm, Hat Heat Platen & Slipper Base
▶ Controller: GY-13 Touchscreen Controller & 2 Temp. Controllers
▶ Printable Articles: Up to 10cm Thickness
▶ Air Compressor Required: Yes
▶ Voltage: 120V/ 220V
▶ Power: Lable: 110V/2200W, 220V/2400W
                  Cap: 110V/1560W, 220W/2100W
▶ Time Range: 0-999 sec.
▶ Maximum Temp: 225℃
▶ Packing Size: 83*79*104.5cm
▶ Net Weight : 81.3kg

▶Machine Type: Electric Powered, Auto Swing
▶Platen Size: 16''x20''/16''x24''
                  (40x50cm/ 40x60cm)
▶Under Plate: Quick-change, Slide-out
▶Controller: GY-13 Touchscreen Panel, Store 3 Settings,
                Pressure 0-8, Production Counter, Auto-Off
▶Printable Articles: Up to 35mm Thickness
▶Emergency Stop Button: Yes
▶Voltage: 120V/ 220V
▶Power: 1.8KW/ 2KW
▶Time Range: 0-999 sec.
▶Maximum Temp: 225 C
▶Packing Size: 95x58x82cm
▶Net Weight: 95kg/ 99kg
▶Gross Weight: 132.5kg/ 136.5kg

▶ Model No.: XS-15/ XS-20/ XS-24
▶ Machine Type: Auto & Manual Mode Switch, Fully Threadability
▶ Platen Size: 15"x15"(38x38cm)/ 16"x20"(40x50cm)/ 16"x24"(40x60cm)
▶ Pressure Value: 0-8
▶ Controller: GY-13 Touchscreen Panel, Store 3 Settings
▶ Printable Articles: Up to 20mm Thickness
▶ Voltage: 120V/ 220V
▶ Power: 15:1.5KW/1.8KW; 20&24:1.6KW/1.8KW
▶ Opening Anglel:  35 degree              >>

▶ Model No.: DCH-800
▶ Platen Size: 15"x15"(38x38cm)
▶ Controller: GY-04 Digital Time & Temp. Control
▶ Printable Articles: Up to 50mm Thickness
▶ Voltage: 120V/ 220V
▶ Power: 1.5KW/ 1.8KW
▶ Net Weight: 39kg
▶ Gross Weight: 43kg

▶ Model No.: MP-10
▶ Working Mode: Easy Heater Exchange
▶ Suit for:  10oz/ 12oz/ 17oz/ 11oz-15oz, 20oz & 30oz Tumbler
▶ Machine Pressure: Adjustable
▶ Maximum Temp.: 225C (437F)
▶ Power: 130W-260W
▶ Voltage: 220V/ 110V
▶ Frequency: 50-60Hz
▶ Certification: CE Approval

▶ Model No.: MAX-XCAP
▶ Usage: Emblem / Patch Sublimation Transfer
▶ Controller: GY-13 Touchscreen Controller
▶ Color: Red & Black
▶ Voltage: 120V/ 220v
▶ Power: 1200W/ 1550W
▶ Gross Weight: 23.8kg
▶ Carton Size: 65x39x28cm

▶ Model No.: RHP-15MS/RHP-20MS/RHP-24MS
▶ Machine Type: Auto Release, Elevated Lower Platen
▶ Platen Size: 15"x15"/16"x20"/16"x24"(38x38cm/40x50cm/40x60cm)
▶ Controller: GY-06 Digital Time & Temp.Control
▶ Printable Articles: Up to 20mm Thickness
▶ Opening Angle: 35 degree
▶ Voltage: 120V/ 220V
▶  Power: 15: 1.5KW/ 1.8KW; 20&24: 1.6KW/ 1.8KW
▶  Time Range: 1-999 sec
▶  Maximum Temp: 225℃
▶  Packing Size: 95x52x64cm (RHP-24MS)
▶  Net Weight: 54kg (RHP-24MS)
▶  Gross Weight: 65kg (RHP-24MS)

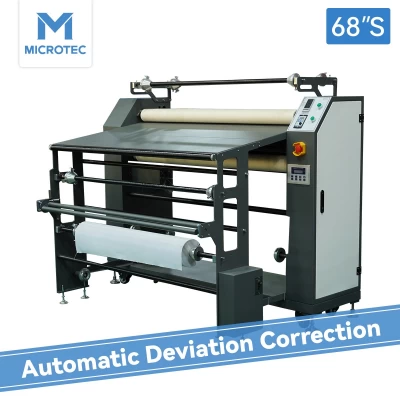

▶Max working width: 68"(1727mm)
▶Max temperature: 392℉(200℃)
▶Dia of drum: 9.8"(250mm)
▶Heating elements: 3
▶Power: 13.5KW
▶Voltage: 220V/3 phase&380V/3 phase
▶Heating media: Thermal Oil
▶Digital display of temperature: Yes
▶Number of mandrels included: 6 mandrels, 3 feed, 3 take-up

▶ Model No.: NMAX-200
▶ Usage: Bags, Hats, Ornaments etc
▶ Platen: Interchangeable Upper & Lower Platens
▶ Automatic Grade: Auto Release
▶ Color: Red & Black
▶ Voltage: 120v/ 220v
▶ Power: 500-1000W
▶ Gross Weight: 28kg
▶ Carton Size:  67*40*65cm

Model No.: NMAX-200
Usage: Bags, Hats, Ornaments etc,Tag,Label
Platen: Interchangeable Upper & Lower Platens
Automatic Grade: Auto Release
Color: Red & Black
Voltage: 120v/ 220v
Power: 500-1000W
Gross Weight: 28kg
Carton Size:  67*40*65cm

▶ Model No.: RHP-15MS/RHP-20MS/RHP-24MS
▶ Machine Type: Auto Release, Fully Threadability
▶ Platen Size: 15"x15"/16"x20"/16"x24"
▶ Controller: GY-06 Digital Time & Temp.Control
▶ Printable Articles: Up to 20mm Thickness
▶ Opening Angle: 35 degrees
▶ Voltage: 120V/ 220V
▶  Power: 15: 1.5KW/ 1.8KW; 20&24: 1.6KW/ 1.8KW
▶  Time Range: 1-999 sec
▶  Maximum Temp: 225℃
▶  Packing Size: 94.5x52x63.5cm（RHP-24MS）
▶  Net Weight :53.1kg（RHP-24MS）
▶  Gross Weight: 65kg（RHP-24MS）

▶ Model No.: ECH-800
▶ Platen Size: 12"x15"(29x38cm)
▶ Printable Articles: Up to 70mm Thickness
▶ Voltage: 120V/ 220V
▶ Power: 1.2KW/ 1.8KW
▶ Time Range: 0-999 Sec.
▶ Maximum Temp.: 225 C
▶ Temperature Accuracy: ±0.5%
▶ Packing Size: 53x53x47cm
▶ Gross Weight: 36kg

▶ Model No.: RHP-15MS/RHP-20MS/RHP-24MS
▶ Machine Type: Auto Release, Fully Threadability
▶ Platen Size: 15"x15"/16"x20"/16"x24"
▶ Controller: GY-06 Digital Time & Temp.Control
▶ Printable Articles: Up to 20mm Thickness
▶ Opening Angle: 35 degrees
▶ Voltage: 120V/ 220V
▶  Power: 15: 1.5KW/ 1.8KW; 20&24: 1.6KW/ 1.8KW
▶  Time Range: 1-999 sec
▶  Maximum Temp: 225℃
▶  Packing Size: 94.5x52x63.5cm（RHP-24MS）
▶  Net Weight :53.1kg（RHP-24MS）
▶  Gross Weight: 65kg（RHP-24MS）

▶ Model No.: MEHP-100A/ SF-MEHP-100A/ MEHP-100B/ MEHP-200/ SF-MEHP-200
▶ Usage: Sublimation Transfer
▶ Voltage: 110V/ 220V
▶ Power: 300W for cap press & 500W for flat press
▶ Gross Weight: 16.13kg/ 18.18kg
▶ Carton Size: 59*45*49cm/ 58*45*48cm

▶ Model No.: MTX-44
▶ Max. working width: 44"(1180mm)
▶ Dia of drum: 7.8"(200mm)
▶ Heating elements: 1
▶ Heating media: Thermal Oil
▶ Max. Feeding Speed: 0-1100mm/min
▶ Max. material roll dimension: 350mm
▶ Number of mandrels included: 6 mandrels, 3 feed, 3 take-up

▶ Machine Type: Pnuematic, Dual heating, Laser Positioning
▶ Platen Size: 15x15cm, Hat Heat Platen & Slipper Base
▶ Controller: GY-13 Touchscreen Controller & 2 Temp. Controllers
▶ Printable Articles: Up to 10cm Thickness
▶ Air Compressor Required: Yes
▶ Voltage: 120V/ 220V
▶ Power: Lable: 110V/2200W, 220V/2400W
                  Cap: 110V/1560W, 220W/2100W
▶ Time Range: 0-999 sec.
▶ Maximum Temp: 225℃
▶ Packing Size: 83*79*104.5cm
▶ Net Weight : 81.3kg

▶ Model No.: XS-15/ XS-20/ XS-24
▶ Machine Type: Auto & Manual Mode Switch, Fully Threadability
▶ Platen Size: 15"x15"(38x38cm)/ 16"x20"(40x50cm)/ 16"x24"(40x60cm)
▶ Pressure Value: 0-8
▶ Controller: GY-13 Touchscreen Panel, Store 3 Settings
▶ Printable Articles: Up to 20mm Thickness
▶ Voltage: 120V/ 220V
▶ Power: 15:1.5KW/1.8KW; 20&24:1.6KW/1.8KW
▶ Opening Anglel:  35 degree              >>

▶ Model No.: MAX-800
▶ Machine Type: Swing Away, Multifunctional
▶ Platen Size: 15"x15"(38x38cm)
▶ Under Plate: Changeable
▶ Controller: GY-05N Digital Time & Temp. Control
▶ Voltage: 120V/ 220V
▶ Power: 1.75KW/ 1.8KW
▶ Gross Weight: 57kg
▶ Packing Size: 79x66x72cm

▶ Model No.: MTX-54
▶ Max. working width: 54"(1370mm)
▶ Dia of drum: 7.8"(200mm)
▶ Heating elements: 1
▶ Heating media: Thermal Oil
▶ Max. Feeding Speed: 0-1100mm/min
▶ Max. material roll dimension: 350mm
▶ Number of mandrels included: 6 mandrels, 3 feed, 3 take-up

▶ Model No.: HPN-CAP-A/HPN-CAP-B
▶ Usage: Sublimation Transfer
▶ Automatic Grade: Auto Release
▶ Color: Red & Black
▶ Voltage: 110v/ 220v
▶ Power: 500W-1000W
▶ Gross Weight: 24kg
▶ Carton Size: 64*36*63cm

                >>

▶ Model No.: DCH-1620
▶ Printing Size: 16"x20" (40x50cm)
▶ Printable Articles: Up to 70mm Thickness
▶ Power: 1.6KW/ 1.8KW
▶ Voltage: 110V/ 220V
▶ Gross Weight: 59kg
▶ Machine Size: 69x41x54cm
▶ Carton Size: 85x55x65cm
▶ Certification: CE Approval

▶ Model No.: PP-10E
▶ Machine Type: Manual, Clamshell, Multifunctional
▶ Controller: GY10 Digital Time & Temp. Control
▶ Under Plate: Exchangeable
▶ Voltage: 110v/ 220v
▶ Power: 350W
▶ Gross Weight: 28kg
▶ Carton Size: 50*30*38cm

Machine Type: Automatic Mug Heat Press
Mug Heater: 11oz
Controller: PLC controller
Speed: 250-270 Pcs/Hour
Voltage: 220V/380V
Power: 6KW
Frequency: 50-60Hz
Time Range: 0-599 sec.
Maximum Temp: 225 C
Temperature Accuracy: ±5
Machine Size: 1700*1100*1800mm
Packing Size: 1924*1224*1946mm
Net Weight: 516KG
Goss Weight: 738KG
Mug Transfer Options: 5pcs/10pcs/15pcs

▶ Model No.: XS-15/ XS-20/ XS-24
▶ Machine Type: Auto & Manual Mode Switch, Fully Threadability
▶ Platen Size: 15"x15"(38x38cm)/ 16"x20"(40x50cm)/ 16"x24"(40x60cm)
▶ Pressure Value: 0-8
▶ Controller: GY-13 Touchscreen Panel, Store 3 Settings
▶ Printable Articles: Up to 20mm Thickness
▶ Voltage: 120V/ 220V
▶ Power: 15:1.5KW/1.8KW; 20&24:1.6KW/1.8KW
▶ Opening Anglel:  35 degree              >>

▶ Model No.: DCH-1620
▶ Printing Size: 16"x20" (40x50cm)
▶ Printable Articles: Up to 40mm Thickness
▶ Power: 1.6KW/ 1.8KW
▶ Voltage: 110V/ 220V
▶ Gross Weight: 59kg
▶ Machine Size: 69x41x54cm
▶ Carton Size: 85x55x65cm
▶ Certification: CE Approval

▶ Model No.: PP-10E
▶ Machine Type: Manual, Clamshell, Multifunctional
▶ Controller: NTTE-2421WR Digital Control
▶ Under Plate: Exchangeable
▶ Voltage: 110v/ 220v
▶ Power: 350W
▶ Gross Weight: 28kg
▶ Carton Size: 50*30*38cm

▶ Model No.: MEHP-100A/ SF-MEHP-100A/ MEHP-100B/ MEHP-200/ SF-MEHP-200
▶ Usage: Sublimation Transfer
▶ Voltage: 110V/ 220V
▶ Power: 300W for cap press & 500W for flat press
▶ Gross Weight: 16.13kg/ 18.18kg
▶ Carton Size: 59*45*49cm/ 58*45*48cm

▶ Machine Type: Pnuematic, Dual heating, Laser Positioning
▶ Platen Size: 15x15cm, Hat Heat Platen & Slipper Base
▶ Controller: GY-13 Touchscreen Controller & 2 Temp. Controllers
▶ Printable Articles: Up to 10cm Thickness
▶ Air Compressor Required: Yes
▶ Voltage: 120V/ 220V
▶ Power: Lable: 110V/2200W, 220V/2400W
                  Cap: 110V/1560W, 220W/2100W
▶ Time Range: 0-999 sec.
▶ Maximum Temp: 225℃
▶ Packing Size: 83*79*104.5cm
▶ Net Weight : 81.3kg

▶ Machine Type: Pnuematic, Dual heating, Dual Stations, Laser Positioning
▶ Platen Size: 15x15cm, Hat Heat Platen & Slipper Base
▶ Controller: GY-13 Touchscreen Controller & 2 Temp. Controllers
▶ Printable Articles: Up to 10cm Thickness
▶ Air Compressor Required: Yes
▶ Voltage: 120V/ 220V
▶ Power: Lable: 110V/2200W, 220V/2400W
                  Cap: 110V/1560W, 220W/2100W
▶ Time Range: 0-999 sec.
▶ Maximum Temp: 225℃
▶ Packing Size: 83*79*104.5cm
▶ Net Weight : 81.3kg

Microtec new digital mug press machine for straight mugs,equipped with GY-10 touch screen digital control...

▶ Model No.: MTX-68
▶ Max. working width: 68"(1730mm)
▶ Dia of drum: 9.8"(250mm)
▶ Heating elements: 3
▶ Heating media: Thermal Oil
▶ Max. Feeding Speed: 0-1200mm/min
▶ Max. material roll dimension: 350mm
▶ Number of mandrels included: 6 mandrels, 3 feed, 3 take-up

▶ Model No.: DCH-1620
▶ Printing Size: 16"x20" (40x50cm)
▶ Printable Articles: Up to 40mm Thickness
▶ Power: 1.6KW/ 1.8KW
▶ Voltage: 110V/ 220V
▶ Gross Weight: 59kg
▶ Machine Size: 69x41x54cm
▶ Carton Size: 85x55x65cm
▶ Certification: CE Approval

▶ Model No.: DCH-100-H
▶ Platen Size: 38*38cm
▶ Under Plate: Work Station for Shoes
▶ Automatic Grade: Manual
▶ Color: Red & Black
▶ Dimension: 69*53*55cm
▶ Weight: 35.25kg
▶ Printable Articles: Up to 30-40mm Thickness
