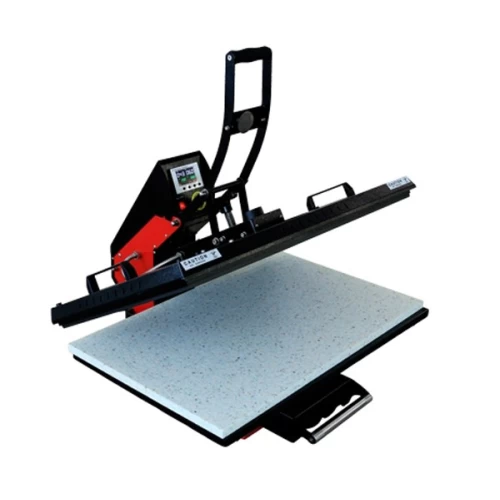

SENKO-30 Auto Open Heat Press

  • Machine Type:  Auto Release, Clamshell
  • Platen Size: 20''X32''  (50*80cm)
  • Under Plate: Draw-out & Exchangeable
  • Controller: GY-04 Digital Time & Temp. Control
  • Printable Articles: Up to 8mm Thickness
  • Opening Angle: 25 degrees
  • Gas Spring Control: Yes
  • Voltage: 120V/ 220V
  • Power: 2.4KW/ 3.6KW
  • Time Range: 0-999 sec.
  • Maximum Temp: 225 C
  • Temperature Accuracy: ±5
  • Wooden Packing Size: 105*97*95cm
  • Net/Gross Wetght:  109.35kg / 162.6kg

The SENKO series is the high-end open car heat press from Microtec for years. With this large format automatic sublimation printing machine, It is very easy and quick to heat by pressing large objects.

With a self-release function, this shell heat press can prevent overheating well. Simply close the large format machine, then it will unlock automatically once the countdown drops to 0. This auto open heat press it is also equipped with an acoustic signal when the transfer is completed. An anti-burn cover on the top plate keeps the top of the automatic heat press cool and prevents a security risk in your workspace.

With large format and good quality, this SENKO heat press it is perfect for printing thick and large sublimations

Emergency stop switch: With the emergency switch, it is possible to prevent any accidents and errors during the operation of the large format open automatic heat press.                                                   

GY-04 Digital Controller: The GY-04 digital controller offers complete digital controls and displays and allows simple operations and settings for the large format sublimation press.

Slide-out print bed: You can easily slide the print bed with the handle, which makes operation easier and more convenient

The anti-scald cover: The anti-scald metal cover protects the safe operation of this high quality open thermal press and prevents possible injuries


 Model number Senko-30
 Machine Type  Auto Release, Clamshell
 Plate size  20''X32''  (50*80cm)
 Under Plate  Draw-out & Exchangeable
 Controller  GY-04 Digital Time & Temp. Control
 Printable Articles  Up to 8mm Thickness
 Opening Angle  25 degrees
 Gas Spring Control  Yes
 Voltage  120V / 220V
 Power  2.4KW/ 3.6KW
Time Range  0-999 sec.
 Maximum Temp  225 C
 Temperature Accuracy  ±5
 Wooden Packing Size  105*97*95cm
 Net/Gross Wetght  109.35kg / 162.6kg

The new large format Auto Open heat press with a sliding surface ensures easy and safe operation and is perfect for sublimation printing of large items.

Each Signle copper-coated heating rod is tested before being cast in an aluminum alloy or mica sheet. These heating rods are comparable to those of industrial furnaces that heat up quickly, function efficiently and last for many years. With our industrial quality heat jets, you can get
five years without guarantee

All Microtec hot presses are rigorously tested in the following procedures before shipment.
1) Turn on the machine, let it warm up to 200 degrees Celsius.
2) Keep the temperature at 200 degrees Celsius for at least 20 minutes

All the machines are packed in cardboard with fully wrapped polystyrene and manual instructions are available for each set of machines.

The main objective of Microtec is to support all our customers, who can manage their heat transfer activities without interruption. Therefore Microtec offers FREE SPARE PARTS with a quantitative order and the following guarantee:
* Free lifetime technical support on all hot stamping machines.
* Two-year warranty
* Five-year warranty on castings and welds.
* Five-year warranty on the heating plate.
* Six-month warranty on cup, plate and cap heaters.
