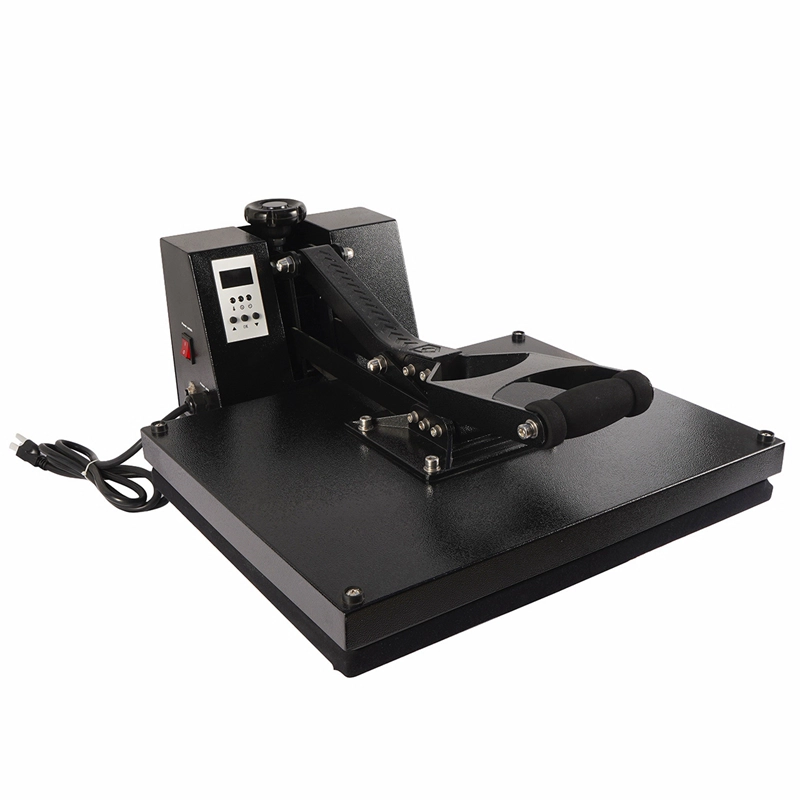

Microtec ZHT High pressure Heat transfer machine is the perfect solution for small business involved in heat transfer of inkjet and laser heat transfer papers, heat transfer vinyl etc. For ZHT manual heat press, optional sizes are 38x38cm, 40x50cm and 40x60cm.
Compared with Microtec other T-shirt heat press machine, ZHT series is more simple in structure and also cheaper for starters. It's also a good options to resell because of it's stable performance.
Plain Heat Press machine ZHT makes transferring your images to T-shirt, jeans, pillow cases, jigsaw, mouse pads, ceramic tiles etc any flat surface.
The main difference for SHT heat press and ZHT heat press machine is that SHT is with plastic electric box, which is lighter, while ZHT is Iron electric box, which is more safty when transportation.
 |
Pressure Adjust Knob: To adjust the pressure easily when sublimate items with different thicknesses. |
 |
GY-04N Digital Controller: Vertical shape of the controller to show accurate time and temperature. |
 |

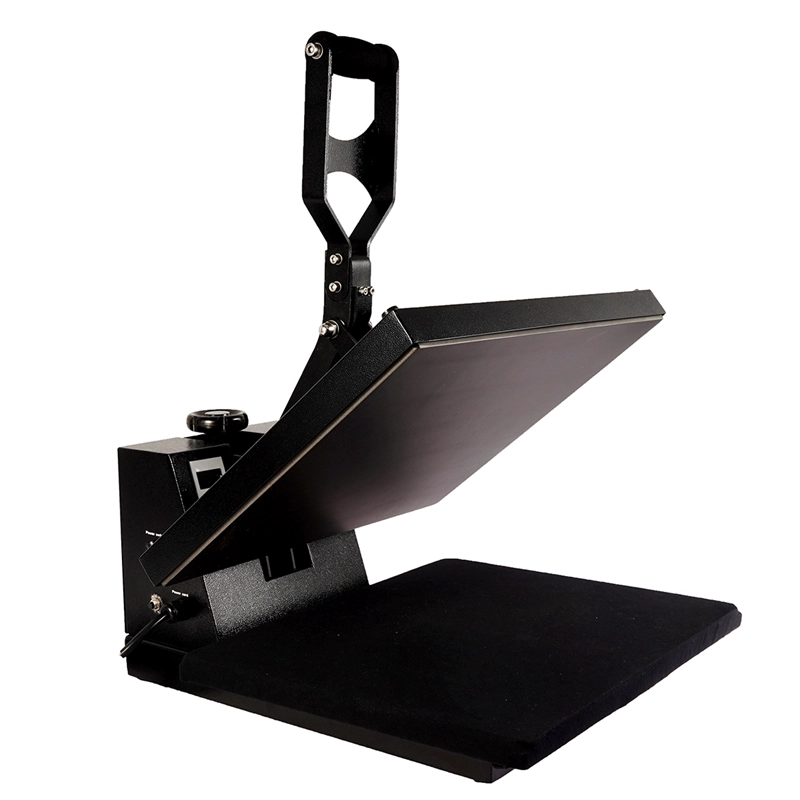

Big Open Angle: Up to 50° makes this heat press much easier and safer to operate. |
 |
High Quality Heat Platen: Even heat platen baked with teflon coating. |
| Model No. | ZHT-15/ ZHT-20/ ZHT-24 |
| Machine Type | Manual, Clamshell |
| Platen Size | 15"x15"/ 16"x20"/ 16"x24" (38x38cm/ 40x50cm/ 40x60cm) |
| Controller | GY-04N Digital Control |
| Printable Articles | Up to 10mm Thickness |
| Opening Angle | 35 Degrees |
| Voltage | 120V/ 220V |
| Power | 15: 1.5KW/ 1.8KW; 20/24: 1.6KW/ 1.8KW |
| Time Range | 0-9 Hours |
| Maximum Temp. | 225 C |
| Packing Size | 71x49x40cm/ 74x64x44cm/ 74x74x45cm |
| Net Weight | 23kg/ 32kg/ 36kg |
| Gross Weight | 26kg/ 35kg/ 42kg |
Microtec's main objective is to support all our customers, who can manage their heat transfer activities without interruption. So Microtec offers FREE SPARE PARTS with a quantitative order and the following guarantee:
* Free lifetime technical support on all heat press machines.
* Two-year warranty
* Five-year warranty on fusions and welds.
* Five-year warranty on the heating plate.
* Six-monthly warranty on the heaters of cups, plates and caps.
