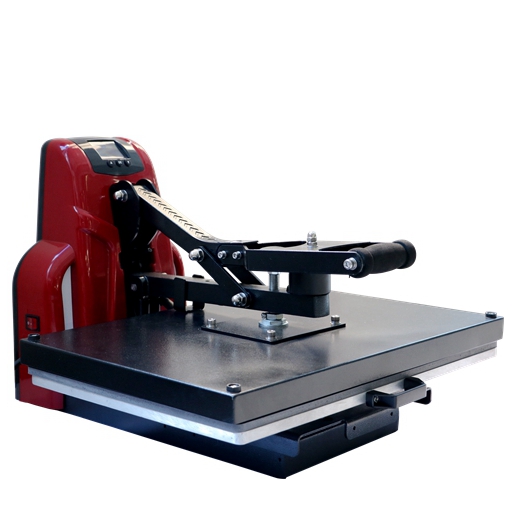

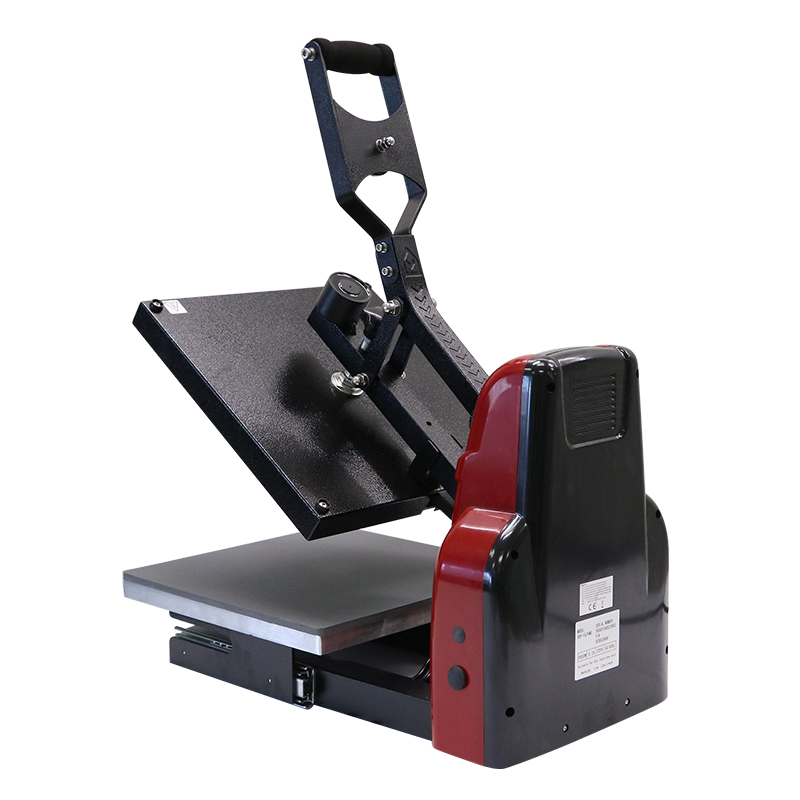

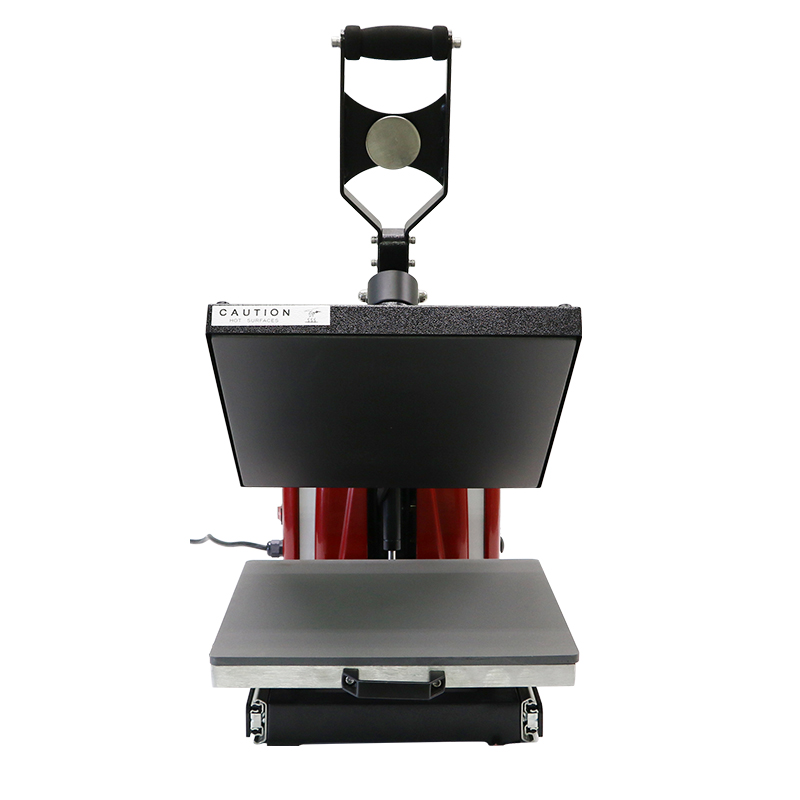

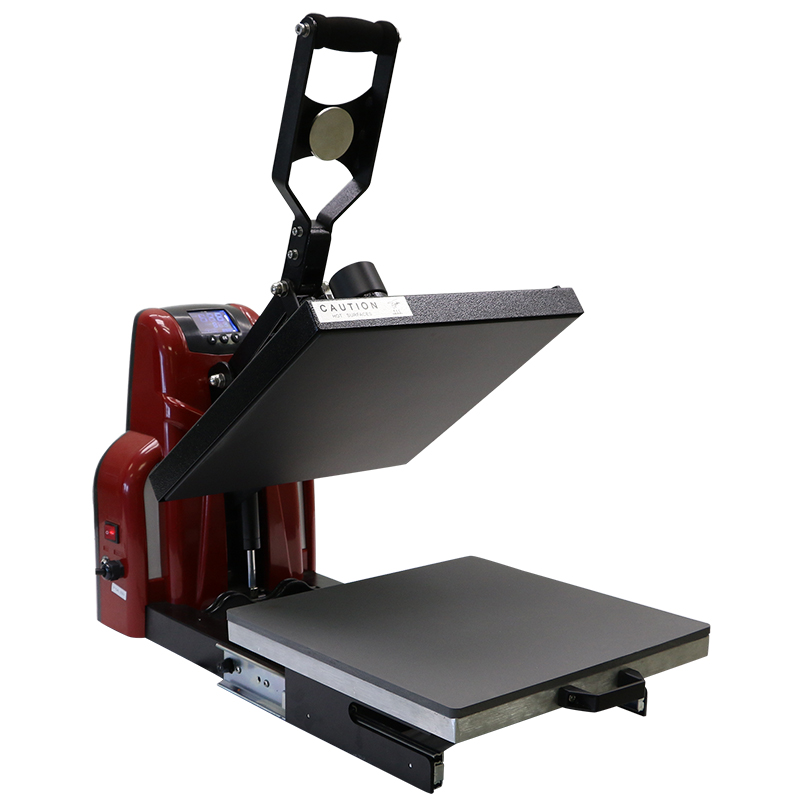

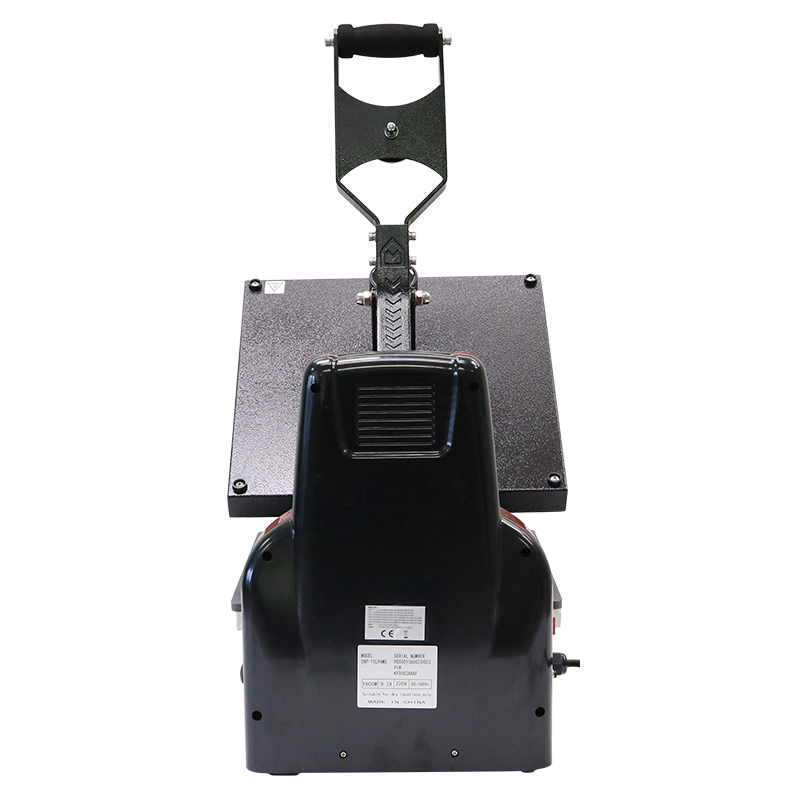

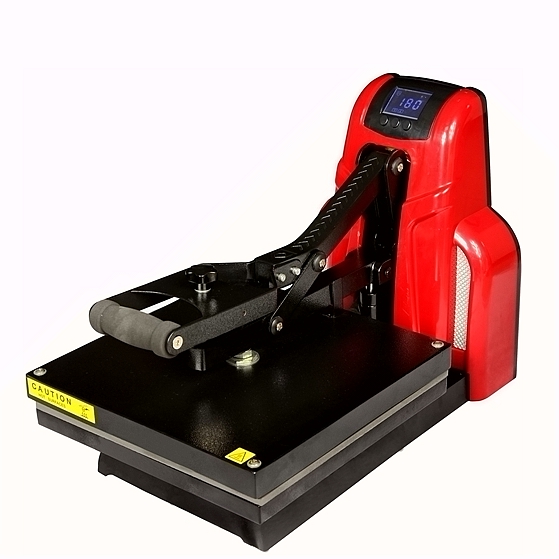

MaxArmour SHP-LP4 Manual Clamshell Heat Press

MaxArmour SHP-LP4 Manual Clamshell Heat Press

  • Machine Type: Manual, Clamshell/Auto Release, Clamshell
  • Platen Size: 15"x15"/16"*20"/16"*24"(38x38cm/40*50cm/40*60cm)
  • Under Plate: Fixed or Draw-out
  • Controller: GY-05N Digital Time & Temp. Control
  • Printable Articles: Up to 15-20mm Thickness
  • Opening Angle: 50 degrees
  • Gas Spring Control: Yes
  • Voltage: 120V/ 220V
  • Power: 1750W/ 1800W
  • Time Range: 0-480 sec.
  • Maximum Temp: 225 C
  • Temperature Accuracy: ±5 C
  • Packing Size: 77*48*57cm/ 77*61*60cm/77*71*60cm/78*48*58cm
  • Gross Weight: 24.97kg/33.43kg/38.24kg/29.38kg

MaxArmour is our first branded heat press machine which with the mission to bring new revolution in the manufacturing of heat press is coming out. For this machine, available sizes are 38x38cm, 40x50cm and 40x60cm.

The whole body of the press is made by mold which not only enhances the production efficiency, but also standardized the production processes. The MaxArmour heat press machine utilizes Hi-Tech heat resistant ABS material to bring a streamline structure of the press, meanwhile, we can also customize colors for you.

Among many T-shirt heat press machines, Microtec MaxArmour heat press will be your first choice because of it's high quality, stable performance and cheap price.



GY-05N Digital Controller: This controller will show temperature, seting time and how many times you have used of this machine. LED light, looks more elegant;                                              

Strong and comfortable handle: Not easy to break or deform after long term use.

Unique and fashionable design: As our branded model, this design is very beautiful and well-recognized.

High-quality Gas Spring: This gas spring makes the press machine open smoothly and safely;


 Model No.  SHP-15LP4/ SHP-20LP4/ SHP-24LP4
 Machine Type  Manual, Clamshell /Auto Release, Clamshell
 Platen Size  15"*15"/ 16"*20"/ 16"*24"(38*38cm/ 40*50cm/ 40*60cm)
 Under Plate  Fixed or Draw-out
 Controller  GY-05N Digital Time & Temp. Control
 Printable Articles  Up to 15-20mm Thickness
 Opening Angle  50 Degrees
 Gas Spring Control  Yes
 Voltage  120V/ 220V
 Power  1750W/ 1800W
 Time Range  0-480 sec.
 Maximum Temp.  225 C
 Temperature Accuracy  ±5 C
 Packing Size  77*48*57cm/ 77*61*60cm/ 77*71*60cm/78*48*58cm
 Gross Weight  24.97kg/33.43kg/38.24kg/29.38kg

Note: Available in Red, Black Color
          Custom sized table castings available for specific layout requirements.

This heat press is ideal for T shirt, mouse pad, MDF products heat transfer




Each Signle Copper sheathed heating rod is tested before it is cast in an aluminum alloy or Mica Sheet. These heating rods are comparable to those found in industrial ovens that heat up quickly, work efficiently and last many years. With our industrial quality heat castings, you can get five years worry free warranty.


All Microtec heat presses are strictly tested under the following procedures before shipping out.
1) Turn on the machine, let it heating up to 200 degree Celsius.
2) Keep the temperature stay at 200 degree Celsius for at least 20 minutes.



Microtec's main objective is to support all our customers, who can manage their heat transfer activities without interruption. So Microtec offers FREE SPARE PARTS with a quantitative order and the following guarantee:
* Free lifetime technical support on all heat press machines.
* Two-year warranty
* Five-year warranty on fusions and welds.
* Five-year warranty on the heating plate.
* Six-monthly warranty on the heaters of cups, plates and caps.
