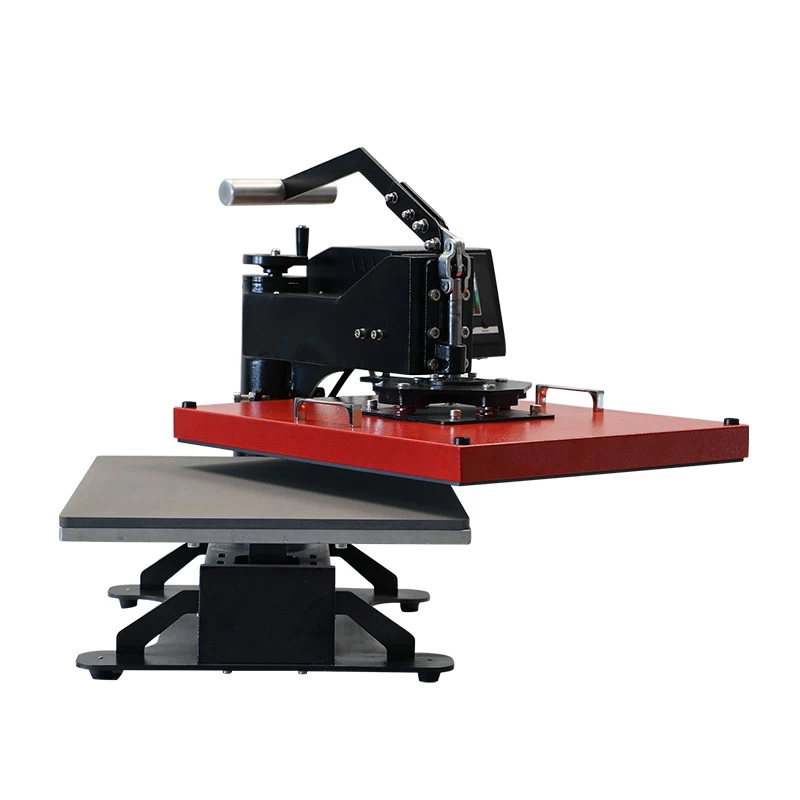

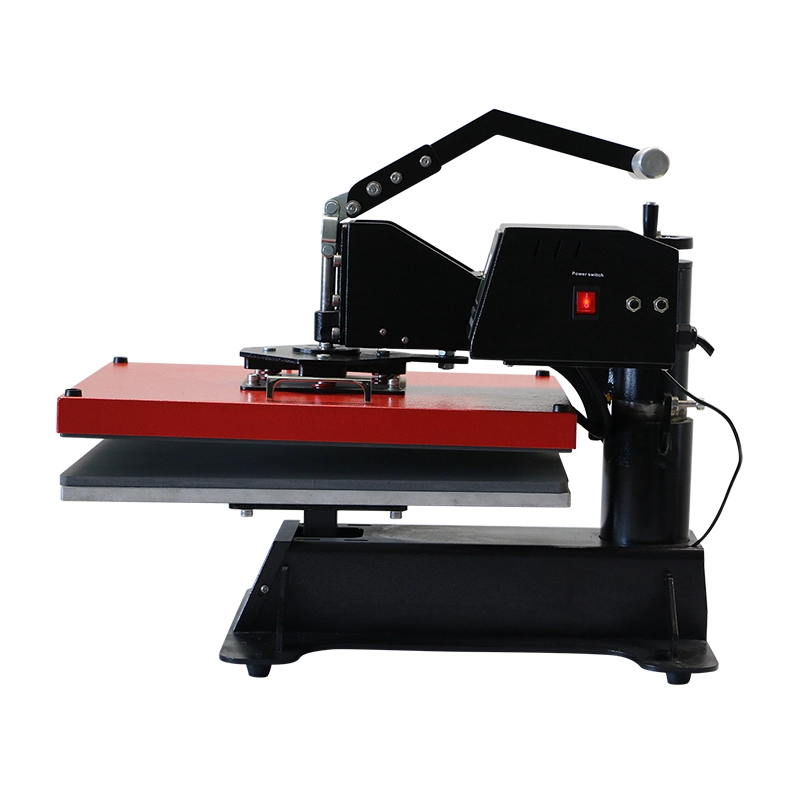

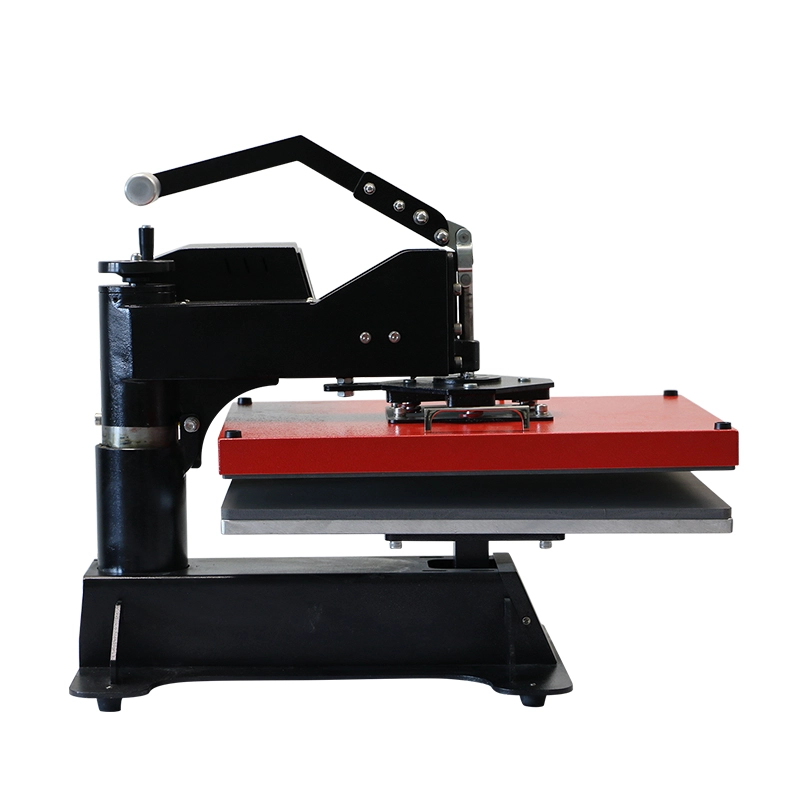

FSP Swing Away Heat Press with Pressure Sensor

  • Model No.: FSP-15/ FSP-20
  • Machine Type: Manual, Swing Away, High Pressure
  • Platen Size: 15"*15"/ 16"*20"(38*38cm/ 40*50cm)
  • Controller: GY-08 Digital Time & Temp. & Pressure Control
  • Pressure: 0-8 Level Display
  • Printable Articles: Up to 55mm Thickness
  • Opening Angle: 50mm
  • Voltage: 110V/ 220V
  • Power: 1.6KW/ 1.8KW
  • Frequency: 50HZ/ 60HZ
  • Time Range: 0-999 Sec.
  • Maximum Temp.: 225 C
  • Temperature Accuracy: ±0.5%

FSP Swing Away Heat Press with Pressure Sensor is a new improved swing away pressure with pressure display function, it is with advance GY-08 digital controller, there is 0-8 Level display available, which can improves the production efficiency.

FSP Swing Away Heat Press with Pressure Sensor, the structure of the machine ensures you a high pressure during transferring which can ensure you an excellent transferring effect, there are 38x38cm, and 40x50cm two size available;

FSP Swing away heat press can apply for T-shirt, T-shirts, frames, slippers and other flat products.

This machine is suit for high end market, like European and North American market etc.

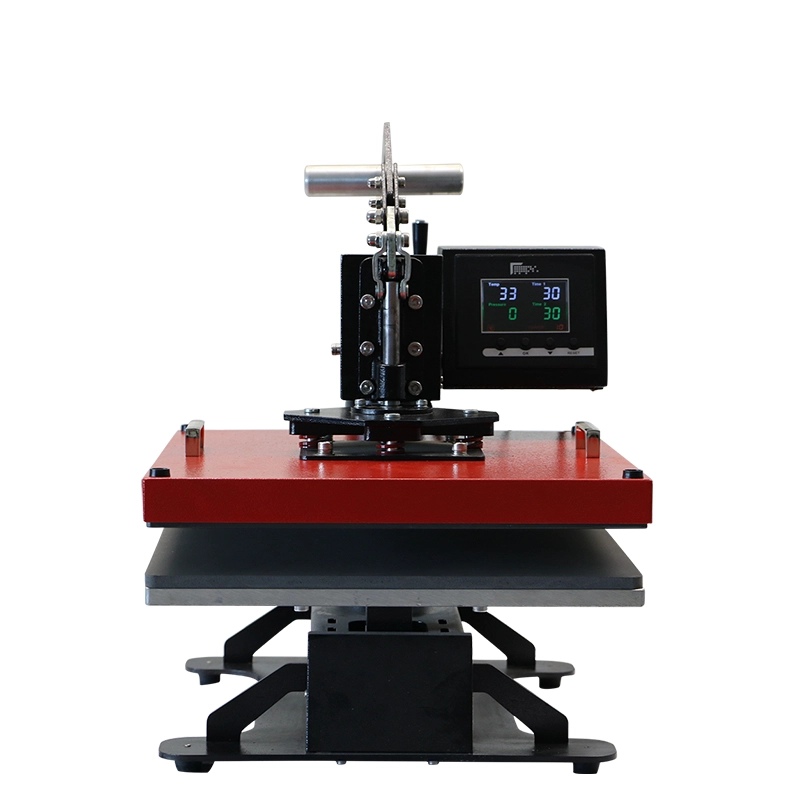

GY-08 Advanced Digital Controller:  Simple design and clear system. It is very easy for user to operate. Live digital time and temperature readout for accurate results every time with production cycle counter.                                                       

Pressure sensor device: With high end pressure sensor, it can display pressure, which can improve your working efficiency.

Swing Away Design: You can swing away the machine while place transfer material, it will be much safer;

Back up circuit breaker: There is one more pcs braker back up, it can save you energy and cost in urgurt situation.



 Model No.  FSP-15/ FSP-20
 Machine Type  Manual, Swing Away, High Pressure
 Platen Size  15"*15"/ 16"*20"(38*38cm/ 40*50cm)
 Controller  GY-08 Digital Time & Temp. & Pressure Control
 Pressure  0-8 Level Display
 Printable Articles  Up to 55mm Thickness
 Opening Angle  50mm
 Voltage  110V/ 220V
 Power  1.6KW/ 1.8KW
 Frequency  50HZ/ 60HZ
 Time Range  0-999 Sec.
 Maximum Temp  225 C
 Temperature Accuracy  ±0.5%
 Machine Size  76*40*59cm/76*41.3*60cm
 Carton Size  73.5*55.5*58cm/80.5*55.5*59cm
 Net Weight  51.60kg/58.00kg
 Gross Weight  61.00kg/68.00kg




FSP Swing Away Heat Press with Pressure Sensor is suitable for high pressure objects.




Microtec's main objective is to support all our customers, who can manage their heat transfer activities without interruption. So Microtec offers FREE SPARE PARTS with a quantitative order and the following guarantee:
* Free lifetime technical support on all heat press machines.
* Two-year warranty
* Five-year warranty on fusions and welds.
* Five-year warranty on the heating plate.
* Six-monthly warranty on the heaters of cups, plates and caps.
