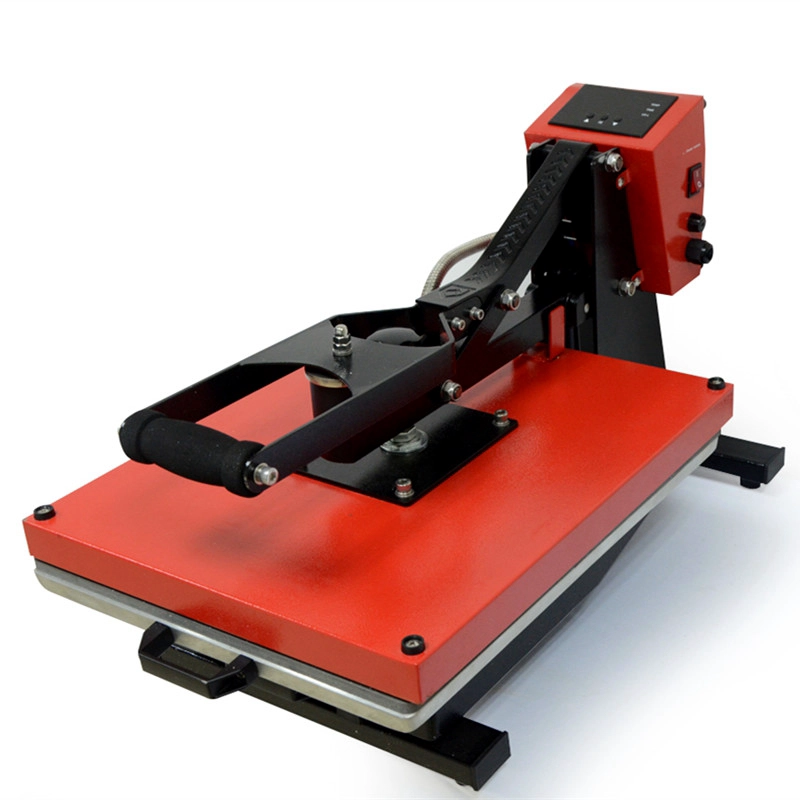

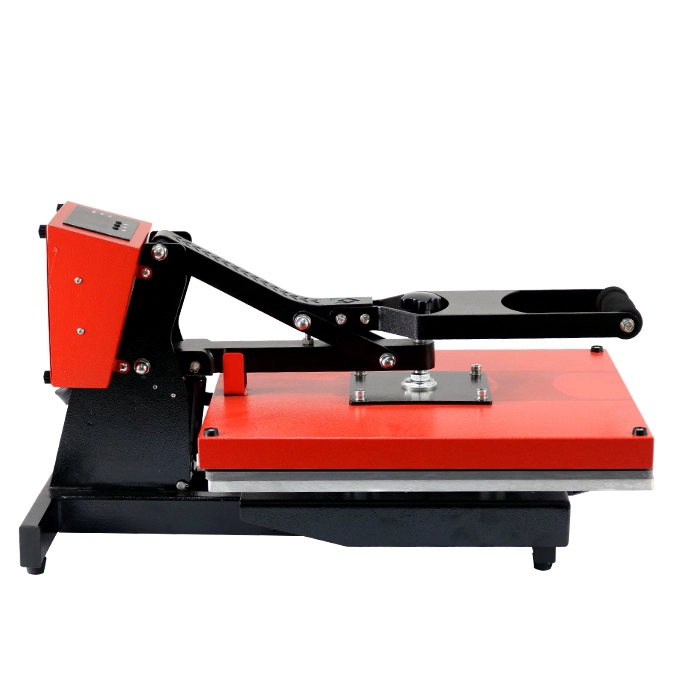

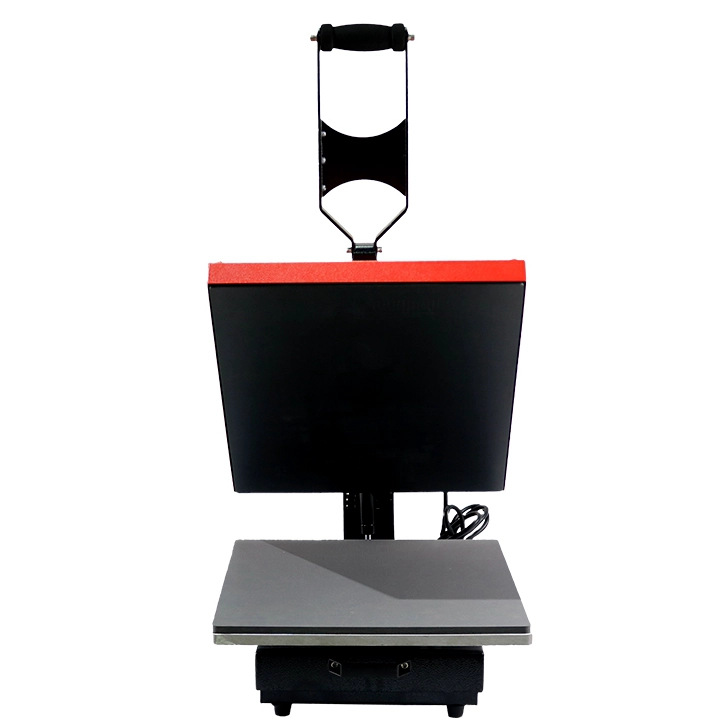

UHP Manual Heat Press Machine with Slide-out Press Bed

  • Model No.: UHP-15S/ UHP-20S/ UHP-24S
  • Size: 38*38cm/40*50cm/40*60cm
  • Voltage: 120V/ 220V
  • Power: 1.6KW/ 1.8KW
  • Temperature Range: 0-255 Degrees
  • Time Range: 0-999 Seconds
  • Gross Weight: 47.5kg for 40*50 One
  • Package Size: 910*450*550mm

The UHP-15S/20S/24S heat press is fashionable High Pressure Heat Press with Slide-out Press Bed. As our most popular heat transfer machine, this machine has three sizes for you to choose: 38x38cm, 40x50cm and 40x60cm.

UHP heat press machine sublimation is made with State-of-the-art control system with solid steel welded framework, which makes it a perfect choice for heavy-duty operation.

Advance design for electrical box gives highend impression, and competitive price among similar tshirt printing machine heat press.

For this press machine, you also choose to be with automatic type. Smooth automatic pressing provides a productive, fatiguefree operation.


GY-04 Digital Controller: Fully digital controls and display allow simple operation and setup for the simple senko auto open heat press.                                           

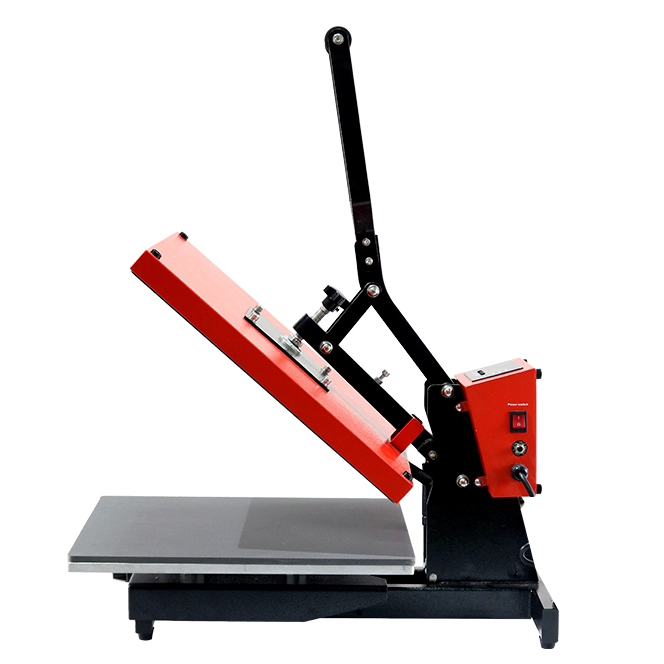

Big Open Angle:  Large open angle makes this machine much easier and safer to operate.

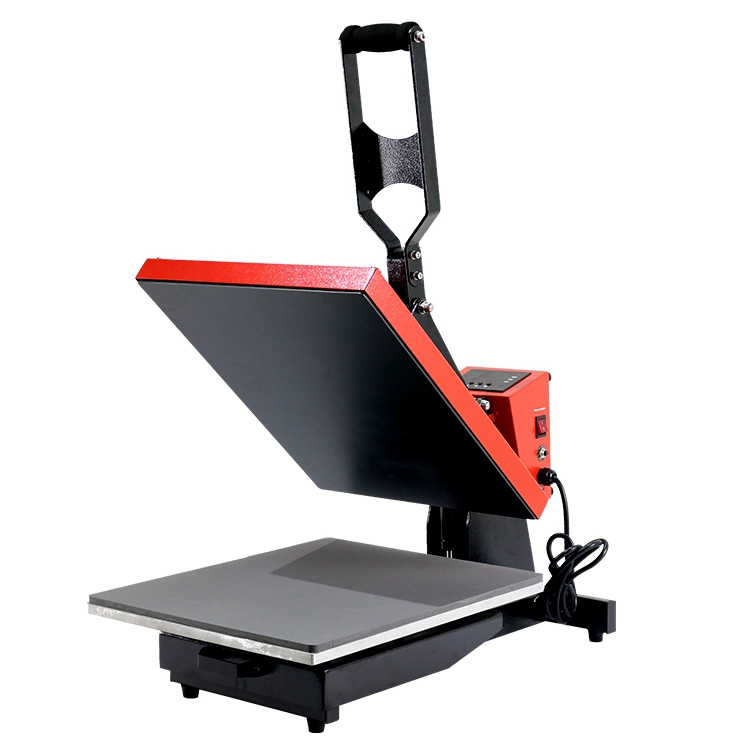

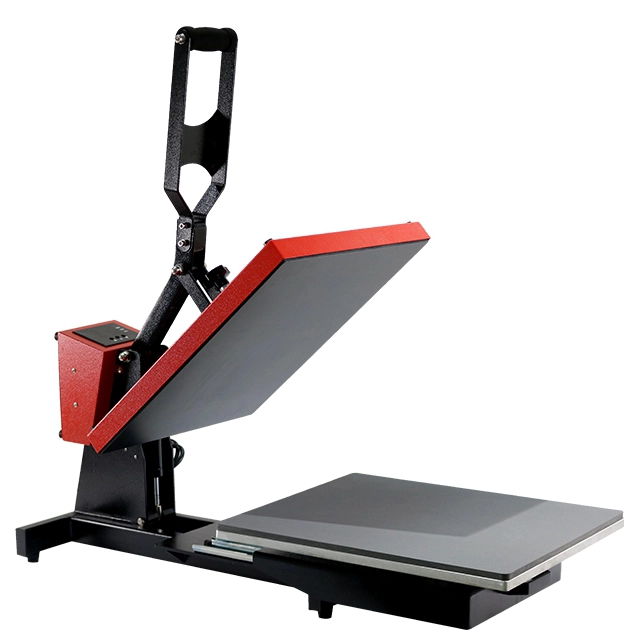

Slide Out Under Plate:To make sure it's easy to operate.

Many Options: You can choose maunal, auto open or slide out, or two of them mixed, to meet the needs of different customer

 Model No.  UHP-15S/ UHP-20S/ UHP-24S
 Machine Type  Manual, with Slid-out Press Bed
 Platen Size  15"*15"/ 16"*20"/ 16"*24"(38*38cm/ 40*50cm/ 40*60cm)
 Controller  GY-04 Digital Time & Temp. Control
 Printable Articles  Thin Materials
 Gas Spring  120kg, 1 Piece
 Voltage  120V/ 220V
 Currency  11A/ 20A
 Power  1.6KW/ 1.8KW
 Frequency  50HZ/ 60HZ
 Time Range  0-999 Sec.
 Maximum Temp.  225 C
 Temperature Accuracy  ±0.5%
 Machine Size  703*400*500mm
 Carton Size  910*450*550mm
 Net Weight  42.5kg for 40*50 One
 Gross Weight  47.5kg for 40*50 One

Microtec's main objective is to support all our customers, who can manage their heat transfer activities without interruption. So Microtec offers FREE SPARE PARTS with a quantitative order and the following guarantee:
* Free lifetime technical support on all heat press machines.
* Two-year warranty
* Five-year warranty on fusions and welds.
* Five-year warranty on the heating plate.
* Six-monthly warranty on the heaters of cups, plates and caps.
