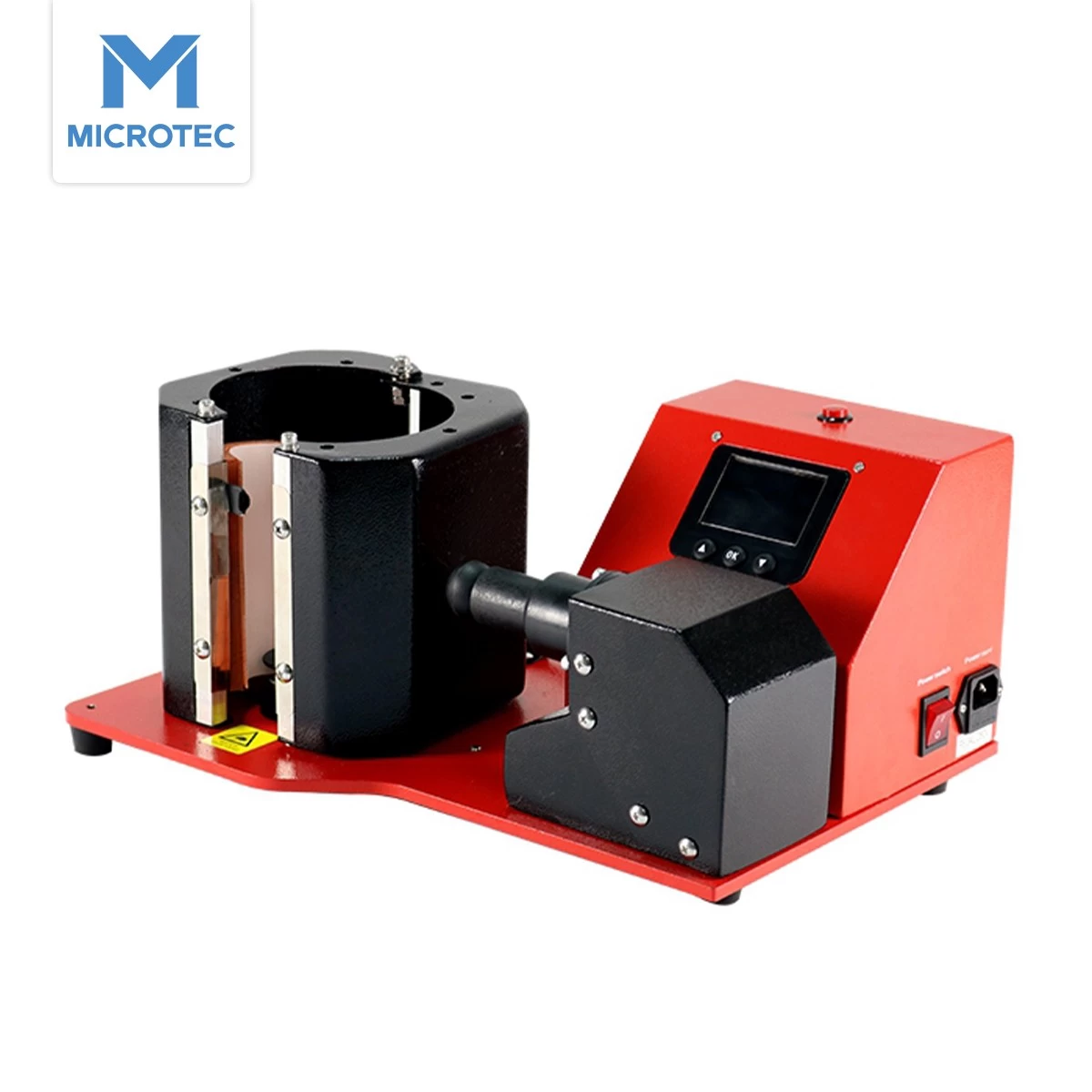

Vertical Type Electric Latte Mug Press MP-99C

  • Controller: GY05N digital time &temperature controller
  • Maximum Temp: 255˚
  • Temperature Accuracy: ±5 C
  • Time Range: 0-999 seconds
  • Power: 300W
  • Voltage: 220v/ 110v
  • Frequency: 50-60Hz, Current: 6A
  • Net /Gross Weight:
  • Machine size: L420xW300xH204mm
  • Optional Mug Heater:
  •     Conical mug heater (for 12oz latte mug);
  •     Cylindrical mug heater (for Dia7.5-8cm, 11oz mug);
  •     Cylindrical mug heater (for Dia8-8.5cm, 15oz & 11oz mug);


Compared with MP-99A/B electric mug heat press, the MP-99C electric mug press is specially designed for transfering 12oz latte mugs. It workes with 3 sizes mug heaters, one for 11oz mug, one for 15oz mug, and another for 12oz latte mugs. Due to its multifunction, this mug press machine is highly acceptable in the heat press markets.

Different from other pneumatic mug press, the MP-99C electric mug press can be also auto-close and auto-open but without air compressor, which is easy and quite.

We adopt high quality approach sensor in the mug press. You just need to put the mugs into the machine, it will close and start to transfer automatically, and warning you to take out the mug when it's done.


 Model No.  MP-99C1/ MP-99C2/MP-99C3/MP-99C4
 Mug Heater  Conical mug heater (for 12oz latte mug);
 Cylindrical mug heater (for Dia7.5-8cm, 11oz mug);
 Cylindrical mug heater (for Dia8-8.5cm, 15oz & 11oz mug)
 Controller  GY05N digital time &temperature controller
 Maximum Temp.  255˚
 Temperature Accuracy  ±5 C
 Time Range  0-999 seconds
 Power  300W
 Current  6A
 Voltage  220v/ 110v
 Frequency  50-60Hz
 Machine Size  L420xW300xH204mm



GY-05N digital controller: the mug heat press machine has high end GY-05N digital time & temperature controller, Temperature Accuracy: ±5 C, Time Range: 0-999 seconds                                                 

3-size Mug Heaters: for 12oz Conical Mugs/11oz Mugs/15oz Mugs

Approach Sensor: When mug touch it, the machine will close automatically.

Emergency Stop Switch: Safe design

The mug press is suitable for transfering 12oz Conical Mug, 15oz Cylindrical Mug,  11oz Cylindrical Mug


Microtec's main objective is to support all our customers, who can manage their heat transfer activities without interruption. So Microtec offers FREE SPARE PARTS with a quantitative order and the following guarantee:
* Free lifetime technical support on all heat press machines.
* Two-year warranty
* Five-year warranty on fusions and welds.
* Five-year warranty on the heating plate.
* Six-monthly warranty on the heaters of cups, plates and caps.
