Description

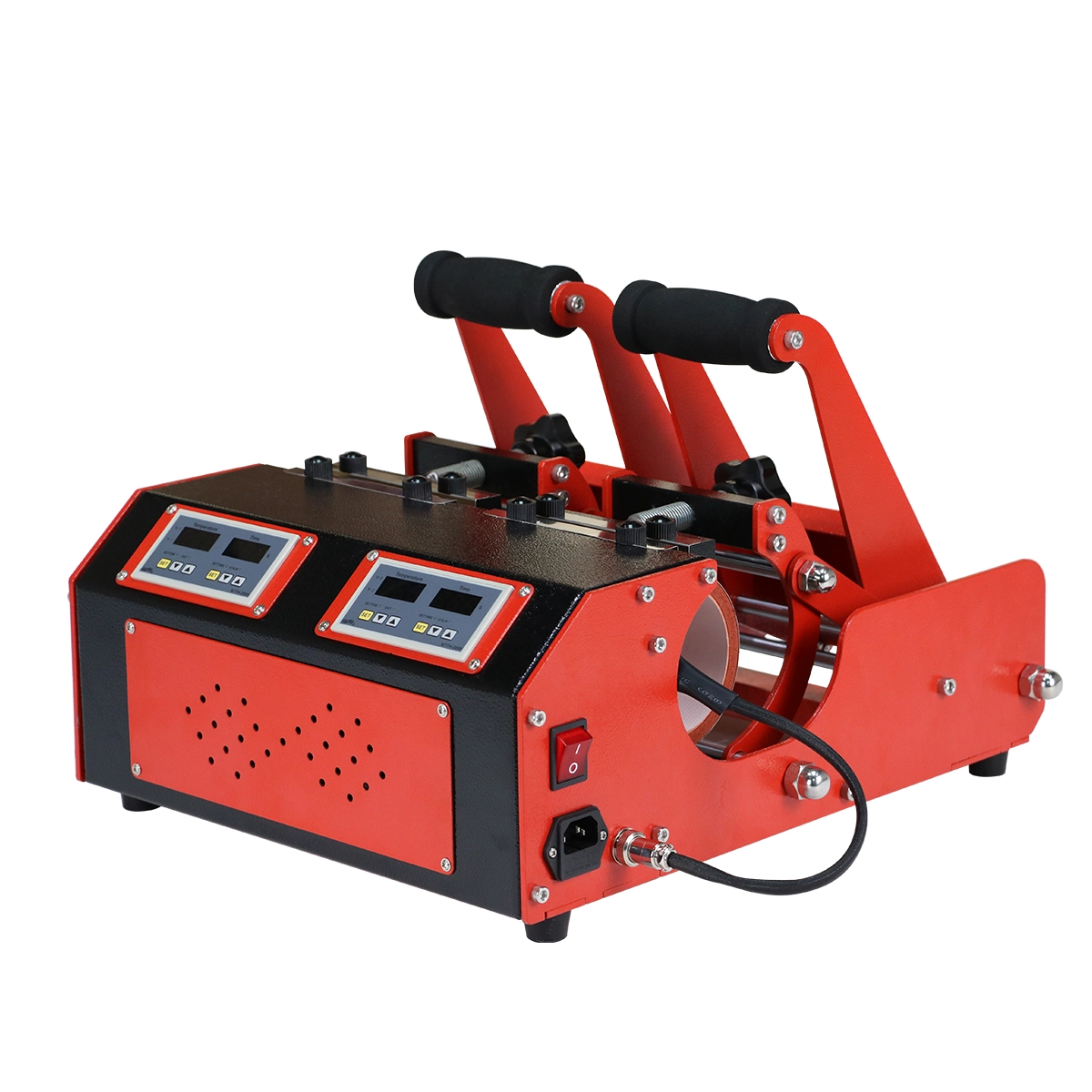

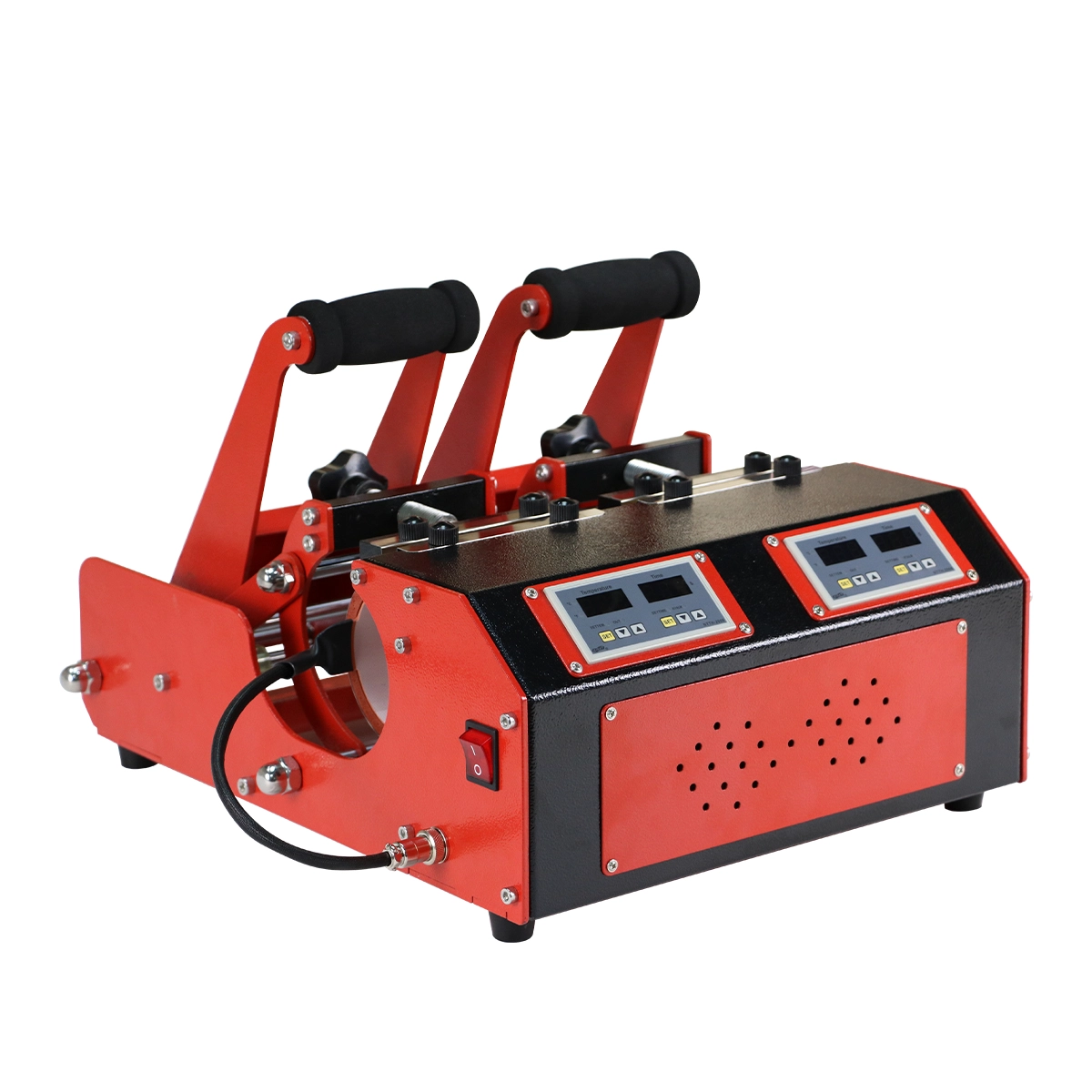

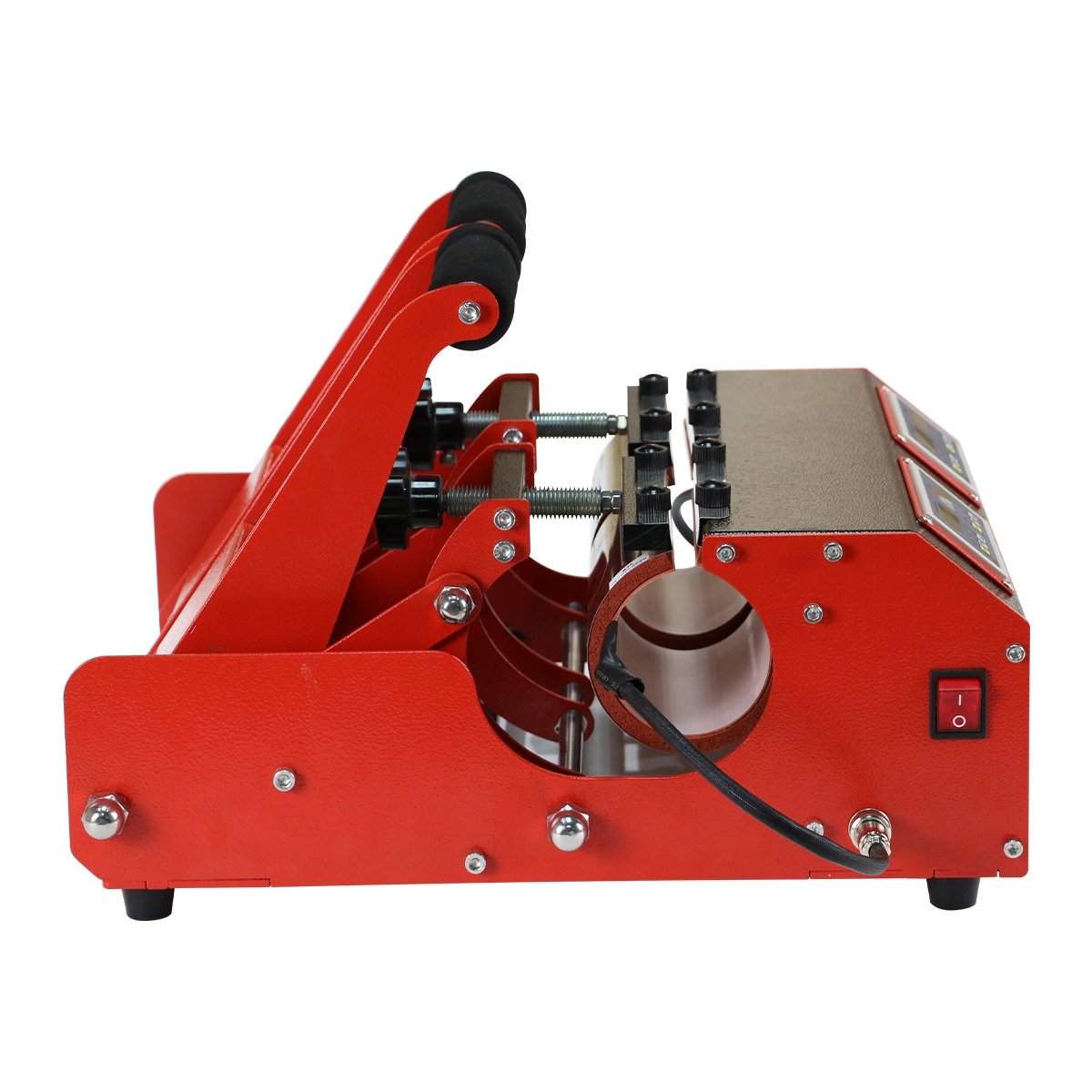

MP-160 Double Tumbler Mug Heat Press
The MP-160 Double Tumbler Mug Heat Press is a versatile and efficient solution for applying digital images onto various mugs and tumblers. Designed for high-volume operations, this machine allows for simultaneous printing on two mugs or one large tumbler, enhancing productivity and versatility in your printing tasks.
Key Features
-
Double-Station Design: Equipped with two independently controlled mug heaters, the MP-160 enables simultaneous printing on two standard mugs or one 20oz/30oz tumbler, significantly boosting production efficiency.
-

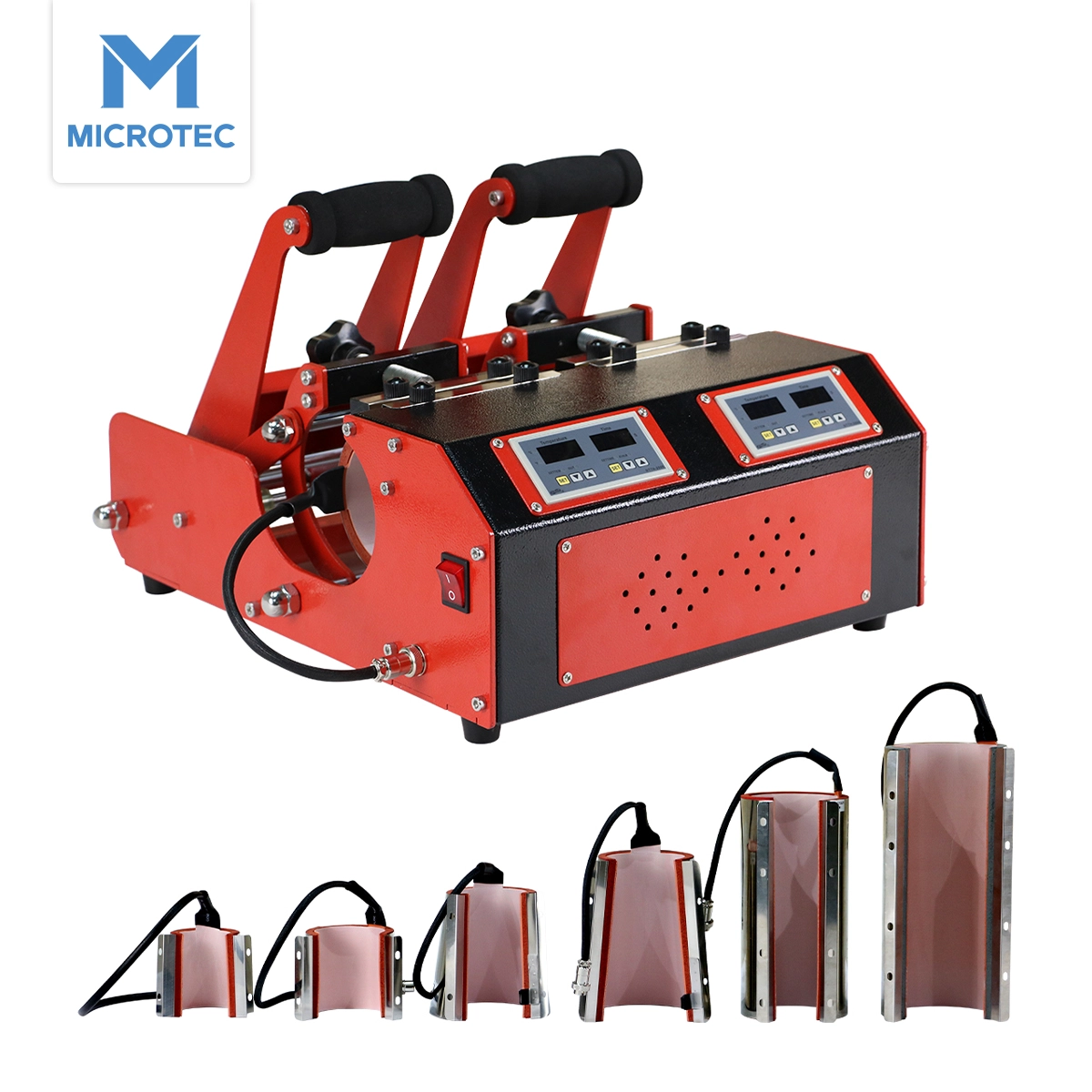

Versatile Compatibility: This press accommodates a wide range of mug sizes, including 1.5oz, 2.5oz, 6-9oz, 11oz, 12oz, 17oz, and 20-30oz tumblers, making it a flexible choice for various sublimation projects.
-
Precise Digital Controls: Featuring two NTTH-2000 digital time and temperature controllers, users can set and monitor temperature and time settings independently for each station, ensuring consistent and high-quality transfers.
-
Adjustable Pressure: The machine includes adjustable supporting blocks and a pressure-adjustable hand wheel, allowing for optimal pressure settings to achieve superior sublimation results across different mug types.
-
High Temperature Range: Capable of reaching up to 220°C (437°F), the MP-160 ensures effective transfer of vibrant and durable designs onto various substrates.
-
User-Friendly Operation: Designed for ease of use, the MP-160 features intuitive controls and clear displays, making it accessible for both beginners and experienced users.
Technical Specifications
-
Model Numbers: MP-160A / MP-160B
-
Machine Type: 2-in-1, Easy Heater Exchange
-
Mug Heater: 2pcs 11oz mug heaters or 1pc 20-30oz tumbler heater
-
Controllers: 2 x NTTH-2000 Digital Time & Temperature Controllers
-
Voltage: 110V/220V
-
Power: 600W (2 x 300W)
-
Time Range: 120-220 seconds
-
Maximum Temperature: 220°C (437°F)
-
Temperature Accuracy: ±0.5%
-
Current: 2.8A/5.5A
-
Frequency: 50-60Hz
-
Net Weight: 13.7kg
-
Gross Weight: 15.9kg
-
Machine Dimensions: 430mm x 410mm x 315mm
-
Packing Dimensions: 550mm x 515mm x 380mm
Included Accessories
-
Adjustable supporting blocks
-
Pressure-adjustable hand wheel
-
Two NTTH-2000 digital controllers
-
Comprehensive user manual
Warranty and Support
Microtec offers a two-year warranty on the MP-160, covering defects in material and workmanship. Additionally, the company provides free lifetime technical support to assist users with setup, operation, and maintenance inquiries, ensuring uninterrupted heat transfer activities.
Conclusion
The MP-160 Double Tumbler Mug Heat Press combines efficiency, versatility, and precision, making it an excellent choice for businesses and individuals involved in high-volume mug and tumbler printing. Its user-friendly design and robust features facilitate the creation of vibrant, customized products with consistent quality.
Machine Warranty
Microtec's Commitment to Customer Support
At Microtec, our primary goal is to ensure that our customers can carry out heat transfer activities seamlessly. To support this, we offer FREE SPARE PARTS with qualifying orders, alongside the following comprehensive guarantees:
- Lifetime Technical Support for all heat press machines.
- Two-Year Warranty on the machine.
- Five-Year Warranty on fusions and welds.
- Five-Year Warranty on the heating plate.
- Six-Month Warranty on heaters for cups, plates, and caps.
We are dedicated to providing long-term reliability and peace of mind for your heat transfer operations.
