S4-20 4-Station Automatic Carousel Heat Presses

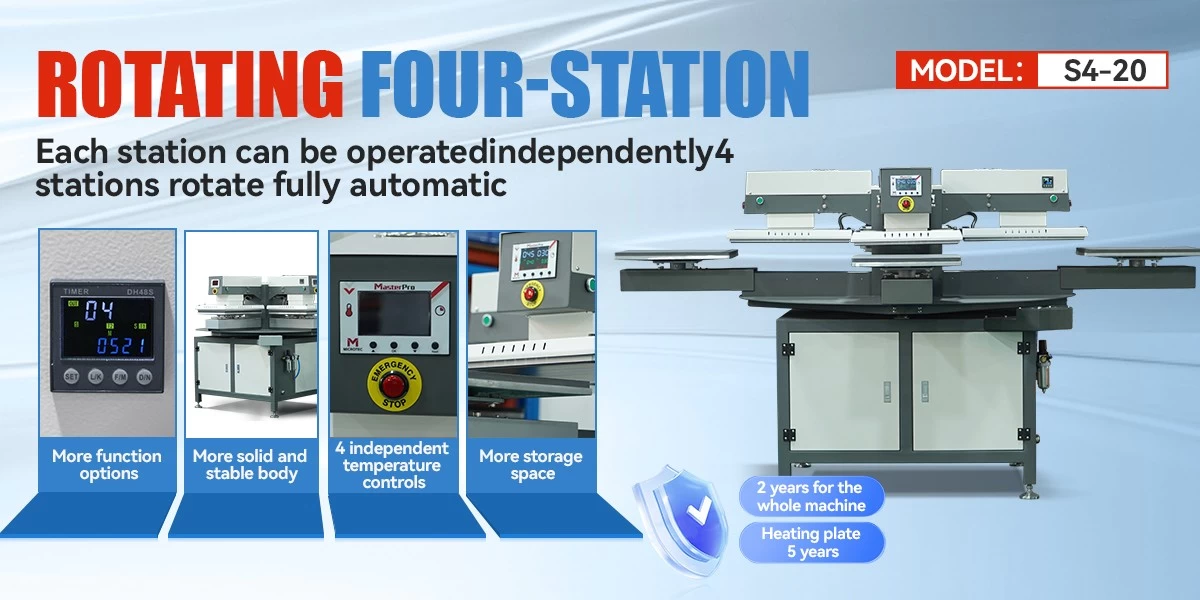

S4-20 4-Station Automatic Carousel Heat Press

The S4-20 is a high-performance, fully automatic heat press machine designed to streamline your production process. With its rotating 4-station system, this machine allows for simultaneous printing on multiple items, significantly enhancing productivity and efficiency.

Key Features

• Automatic Operation: Equipped with a fully automated system, the S4-20 minimizes manual intervention, ensuring consistent and high-quality results with every press.​

• Four Rotating Workstations: The machine features four interchangeable workstations, facilitating seamless workflow and allowing one operator to manage multiple presses simultaneously.​

• Large Platen Size: Each station is equipped with a 16" x 20" (40 x 50 cm) heat platen, providing ample space for a variety of items, including garments, bags, and promotional products.​

• Pneumatic Drive Technology: The S4-20 utilizes pneumatic drive technology to apply even and consistent pressure across the substrate, resulting in superior transfer quality.​

• Interchangeable Under Platens: The machine comes with four threadable under platens, ideal for garment printing, and features non-stick Teflon-coated heat platens to prevent transfers from sticking.​

• Precise Digital Control: Featuring the GY-06 digital controller, the S4-20 offers accurate time and temperature settings, ensuring optimal conditions for various heat transfer applications.​

Technical Specifications

• Model No.: S4-20​

• Machine Type: Automatic, Rotating, 4-Station​

• Platen Size: 16" x 20" (40 x 50 cm)​

• Under Plate: Exchangeable​

• Controller: GY-06 Digital Time & Temp. Control​

• Printable Articles Thickness: Up to 32 mm​

• Air Compressor Requirement: Yes (0.6 MPa)​

• Voltage: 220V​

• Power: 7.5 KW​

• Time Range: 0-999 sec.​

• Maximum Temperature: 225°C​

• Packing Size: 168 x 168 x 151 cm​

• Gross Weight: 710 kg (Wooden Package)

Applications

The S4-20 is versatile and suitable for a wide range of heat transfer applications, including:​

• Garments (T-shirts, sweaters)​

• Bags​

• Promotional items​

• Hard and soft goods​

• Packaging​

• Signs​

• Koozies​

• Sublimation projects​

It's also ideal for applications like DTG, vinyl, printed transfers, leather, heat seal patches, foil, and other special effects.​

Enhance Your Production Efficiency

Investing in the S4-20 4-Station Automatic Carousel Heat Press will significantly boost your production efficiency, reduce labor costs, and ensure consistent, high-quality heat transfers. Its user-friendly design and advanced features make it a valuable asset for businesses aiming to optimize their heat transfer processes

Machine Warranty

Microtec's Commitment to Customer Support

At Microtec, our primary goal is to ensure that our customers can carry out heat transfer activities seamlessly. To support this, we offer FREE SPARE PARTS with qualifying orders, alongside the following comprehensive guarantees:

• Lifetime Technical Support for all heat press machines.
• Two-Year Warranty on the machine.
• Five-Year Warranty on fusions and welds.
• Five-Year Warranty on the heating plate.
• Six-Month Warranty on heaters for cups, plates, and caps.

We are dedicated to providing long-term reliability and peace of mind for your heat transfer operations.
