Cost-effective Swing Away Heat Press Machine SSH-1215MCost-effective Swing Away Heat Press Machine SSH-1215MCost-effective Swing Away Heat Press Machine SSH-1215MCost-effective Swing Away Heat Press Machine SSH-1215MCost-effective Swing Away Heat Press Machine SSH-1215MCost-effective Swing Away Heat Press Machine SSH-1215M

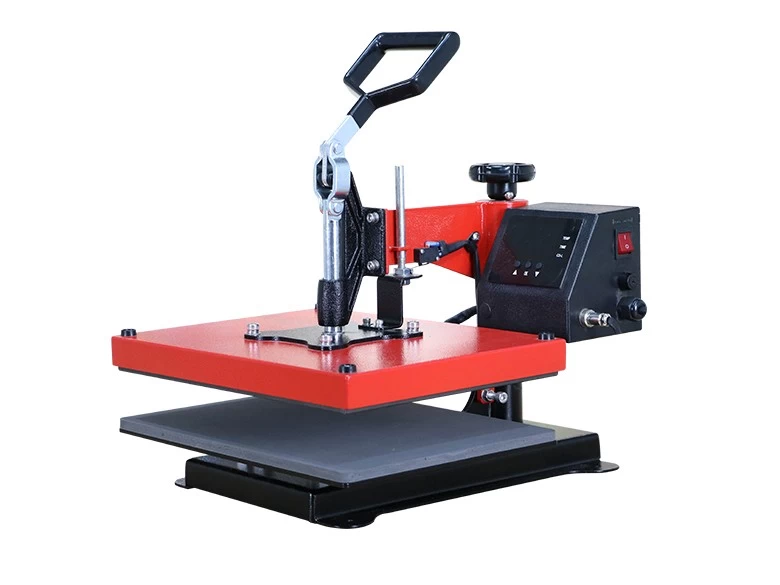

Cost-effective Swing Away Heat Press Machine SSH-1215M

  • Machine Type: Manual, Swing Away, Economy
  • Platen Size: 12"*15"(29x38cm)
  • Controller: GY-04 Digital Time & Temp. Control
  • Under Plate: Fixed
  • Printable Articles: Up to 15mm Thickness
  • Voltage: 110V/ 220V
  • Power: 1.6KW/ 1.8KW
  • Frequency: 50HZ/ 60HZ,Currency 10-15A
  • Time Range: 0-999 Sec.
  • Maximum Temp: 225 C
  • Temperature Accuracy: ±5℃

The SSH swing away heat press is a great entry-level heat press for business or hobby purposes, as it is more practical and safer to use than clamshell heat press. For heat press machine swing away design, the pressure is directed straight down, thus the pressure is more evenly.

This heat press machine adopts 90-degree rotation of swing arm, which allows the heat platen to be moved aside safely, and keeps the machine from shaking or toppling. Safe to use.

The printable articles thickness of this swing heat press is up to 15mm, thus it is good to transfer fabric, t-shirt, mouse pads, ceramic tiles, glass, coasters, mdf, etc.





  
GY-04 Digital Controller : This controller makes the electric box smaller (light volume weight), while is also accurate in time and temp. display.                                       

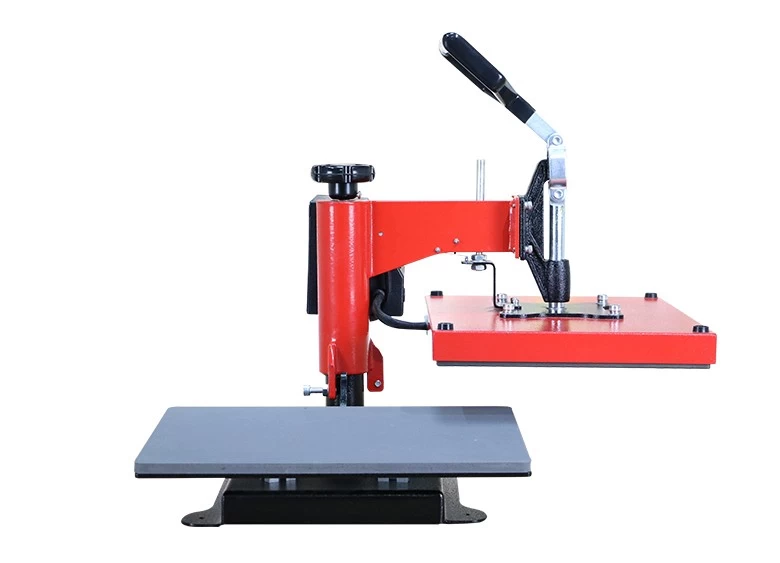

Swing Away Design: It helps you can work away from the heat, and easy to put the material to the press machine, and also with better pressure as the pressure can be directed straight down.

Limited Rod: This rod helps to keep the machine standing still. More safty.

12"*15" Heat Element Size: This size is popular in markets, and very versatile. It is small enough to move around, but not so small that you can't use them to transfer T-shirts.



 Model No.  SSH-1215
 Machine Type  Manual, Swing Away, Economy
 Platen Size  12"*15"(29x38cm)
 Controller  GY-04 Digital Time & Temp. Control
 Under Plate
 Fixed
 Printable Articles  Up to 15mm Thickness
 Time heating to 200℃  Around 10minutes
 Voltage  110V/ 220V
 Power  1.6KW/ 1.8KW
 Frequency  50HZ/ 60HZ, Current 10-15A
 Time Range  0-999 Sec.
 Maximum Temp   225 C
 Temperature Accuracy  ±5℃
 Machine Size  44.5*39*29cm
 Carton Size  55.5*46.5*36cm
 Net Weight  21kg
 Gross Weight  23kg


It is good to transfer fabric, t-shirt, mouse pads, ceramic tiles, glass, coasters, mdf, etc.









FIVE YEAR WARRANTY!
Microtec's main objective is to support all our customers, who can manage their heat transfer activities without interruption. So Microtec offers FREE SPARE PARTS with a quantitative order and the following guarantee:
* Free lifetime technical support on all heat press machines.
* Two-year warranty
* Five-year warranty on fusions and welds.
* Five-year warranty on the heating plate.
* Six-monthly warranty on the heaters of cups, plates and caps.
