ASTM-40/48/64-S automatic machine for heat press with single stationASTM-40/48/64-S automatic machine for heat press with single stationASTM-40/48/64-S automatic machine for heat press with single station

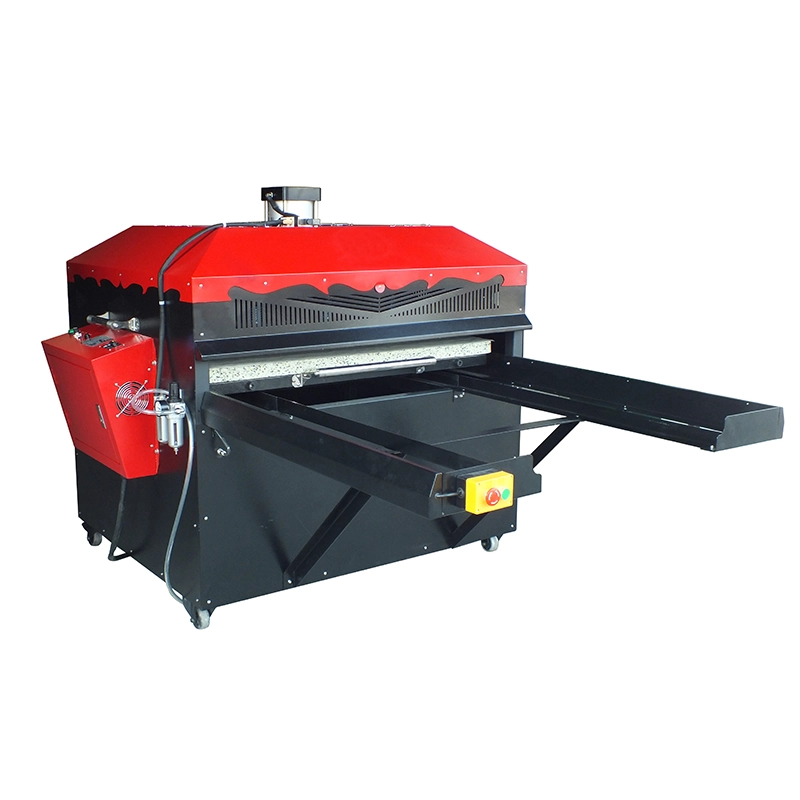

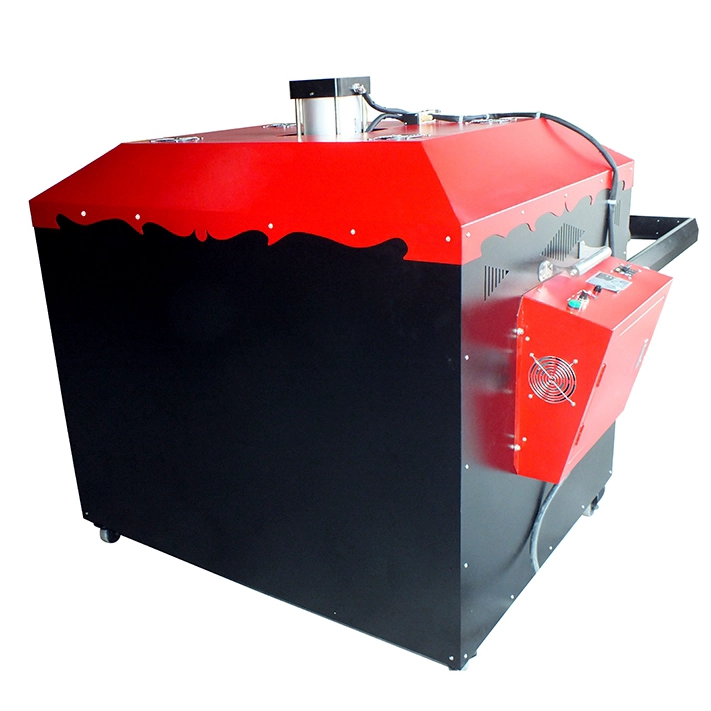

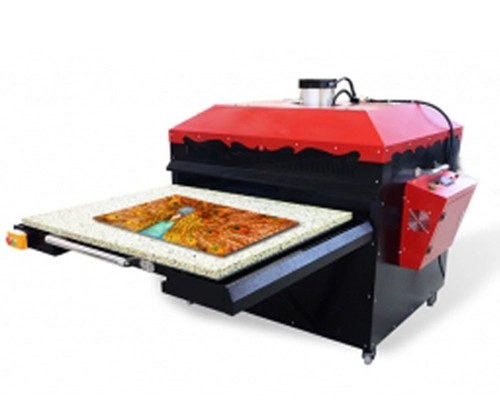

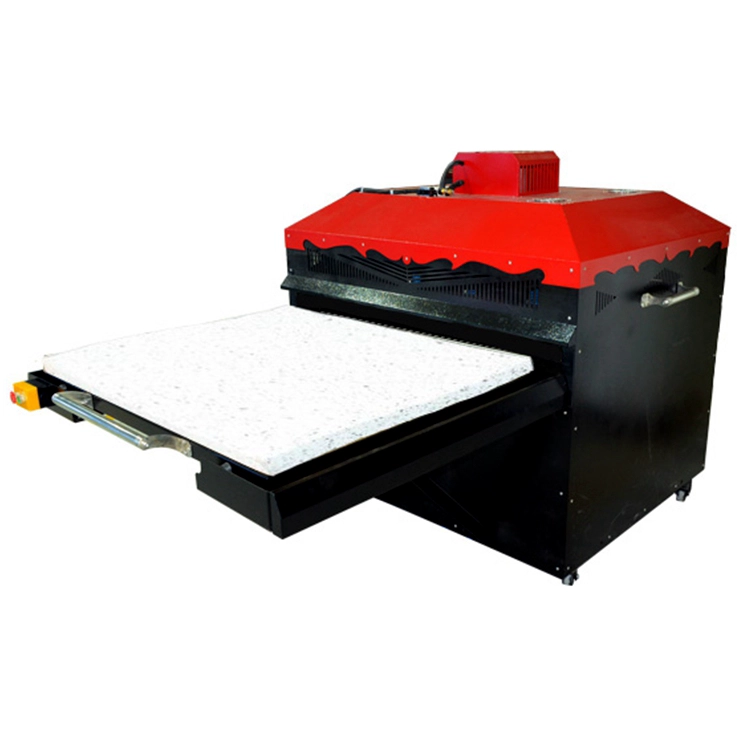

ASTM-40/48/64-S automatic machine for heat press with single station

  • Model No.: ASTM-40-S / ASTM-48-S / ASTM-64-S
  • Machine type: automatic, single station
  • Disk size: 32 "* 40" / 40 "* 48" / 40 "* 64"
  • Under the plate: solved
  • Controller: GY-06 Digital Time & Control Temp
  • Printable items: Thickness up to 20 mm
  • Air compressor required: yes
  • Voltage: 220 V 1 phase / 220 V 3 phases / 380 V 3 phases
  • Power: 5.1KW / 7.5KW / 9KW
  • Time interval: 0-999 sec.
The ASTM-S series sublimation heat press is a competitive production machine for large-scale productions.
Like Microtec large format heat press with maximum price competitiveness, ASTM-S heat press it has 3 optional dimensions: 80x100cm (32 "x40") / 100x120cm (40 "x48") / 100x160cm (40 "x64"). The difference between ASTM heat press and ASTM-S heat press is the ASTM one printing press it has a double work station, while ASTM-S has a single station.

The heat press machine and the pneumatic press with air cyclinder, which offers a good result of pressure and heat transfer. While ASTM-S printing press it is of medium quality in ours pneumatic heat press lines, there is little color difference to transfer thin material, such as fabric, over the high quality XSTM heat press. But ASTM-S is very nice to transfer thicker materials, such as wood, ceramic tiles, photos, etc.

Safety and quality of printing press it is permanently controlled by CE standards. Spare parts exceed UL certifications.


GY-06 Digital Touch Screen Controller: This controller makes the heat press more fashionable; It is easy for you to set the time and temperature and the machine for automatically pressing open heatYes.

Single workstation:The lower plates are easily removable and convenient to use.

Pneumatic heat press with two cylinders: That offers the highest pressure, ideal for sublimation with good productivity and flexibility

Air filter:To adjust the pressure of it, easy to use and maintain.
The iron box:
With an iron box, it is easy to operate the machine with controller. All you need is a person here to check the heat press machine.

 Model number:  ASTM-40-S / ASTM-48-S / ASTM-64-S
 Type of machine   Automatic, single station
 Plate size  32 "* 40" / 40 "* 48" / 40 "* 64" (80 * 100cm / 100 * 120cm / 100 * 160cm)
 Under the plate   Fixed
 ticket inspector  GY-06 Digital Time & Control Temp
 Printable items  Thickness up to 20 mm
 Air compressor required  Yup
 Voltage  220 V 1 phase / 220 V 3 phases / 380 V 3 phases
 Power  5.1KW / 7.5KW / 9KW time interval: 0-999 sec
 Maximum temperature   225 C
 Temperature accuracy  ± 0.5%
 High pressure  8kg / cm
 Packing size  149 * 120 * 174/188 * 157 * 176/227 * 157 * 176 cm
 Gross weight  604 kg / 764 kg / 900 kg (wooden package)
 Tips  The price includes the machine, 2 pieces of teflon sheets, repair kit, excluding air compressor (3HP)


The main objective of Microtec is to support all our customers, who can manage their heat transfer activities without interruption. Therefore Microtec offers FREE SPARE PARTS with a quantitative order and the following guarantee:
* Free lifetime technical support on all hot stamping machines.
* Two-year warranty
* Five-year warranty on castings and welds.
* Five-year warranty on the heating plate.
* Six-month warranty on cup, plate and cap heaters.

Each Signle copper-coated heating rod is tested before being cast in an aluminum alloy or mica sheet. These heating rods are comparable to those of industrial furnaces that heat up quickly, function efficiently and last for many years. With our industrial quality heat jets, you can get five years of trouble-free warranty.

All Microtec hot presses are rigorously tested in the following procedures before shipment.
1) Turn on the machine, let it warm up to 200 degrees Celsius.

2) Keep the temperature at 200 degrees Celsius for at least 20 minutes.

The ASTM series is the large format multi-purpose press for the imprint of a wide range of different materials. It provides an oversized plate, a production-oriented printer and strongly supports sublimation transfer processes, as well as digitally produced transfers and rolling processes.
