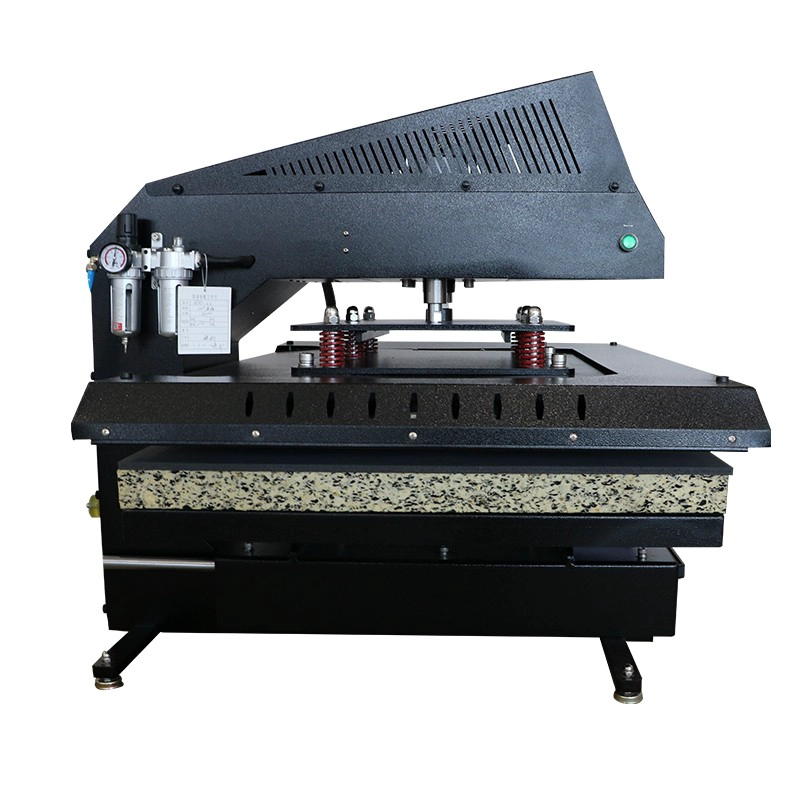

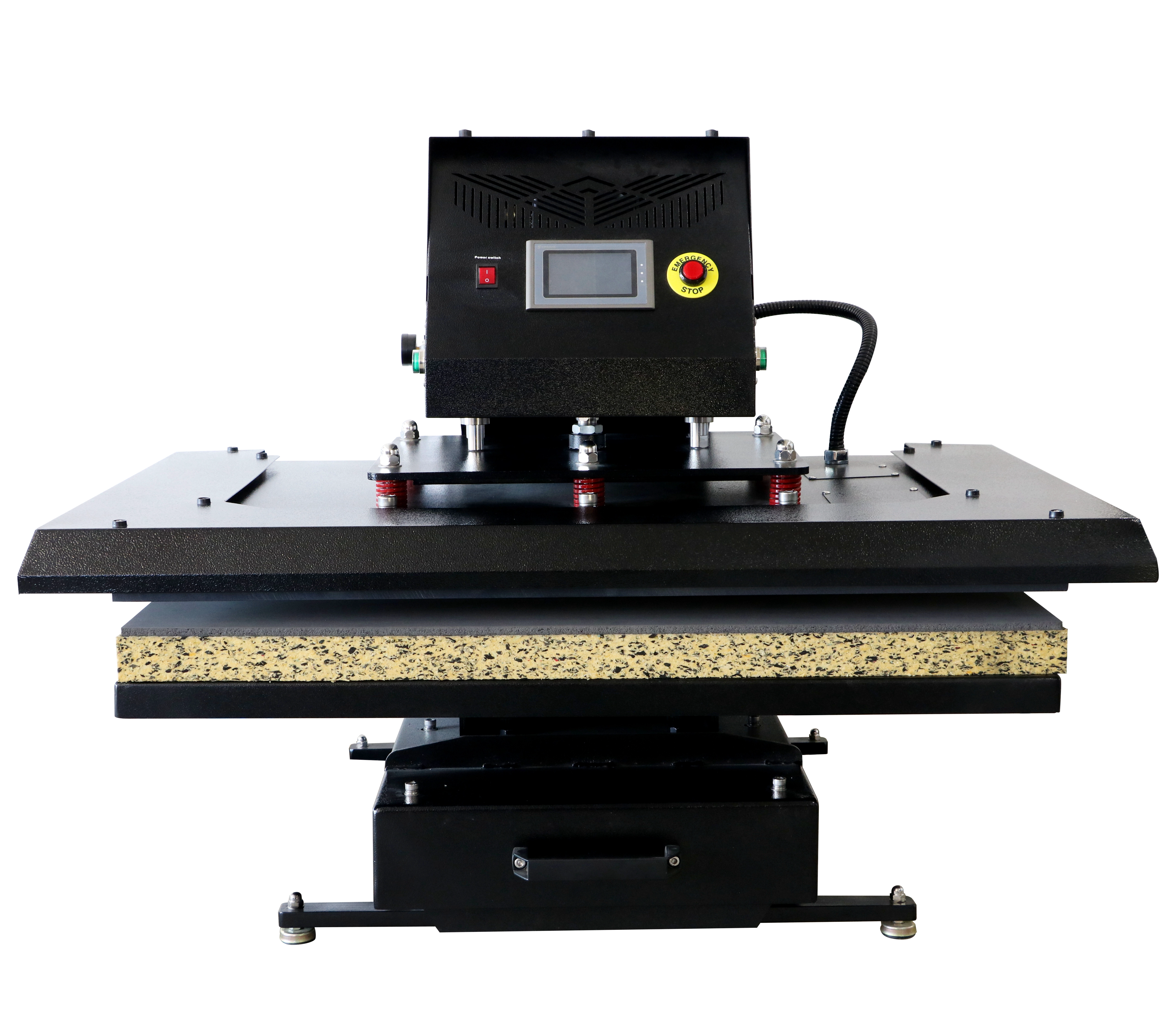

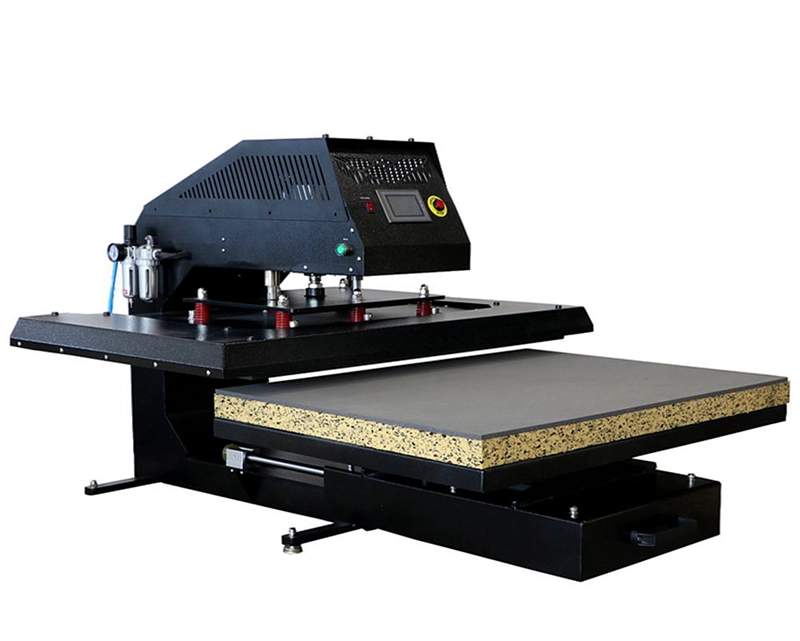

The APHD Series Pneumatic Large Format Draw-out Heat Press is one of Microtec's premier high-pressure heat press machines, renowned for its efficiency and versatility. Specifically designed for large-scale production.
The APHD Pneumatic Large Heat Press stands out as Microtec's best-selling large format heat press, combining a compact design with powerful pressure and an attractive price point. The pneumatic operation, driven by compressed air, ensures consistent and reproducible results for flawless transfers onto various materials without displacement effects. The slide-out bed feature enhances ease of use and ensures safety during material placement.
The APHD large heat press is specifically designed for heat transferring onto aluminum boards, wood, garments, and other raw materials. Stringent quality and safety standards are maintained, with CE certification and UL certifications for spare parts, providing assurance of the machine's reliability and adherence to industry standards.
 |

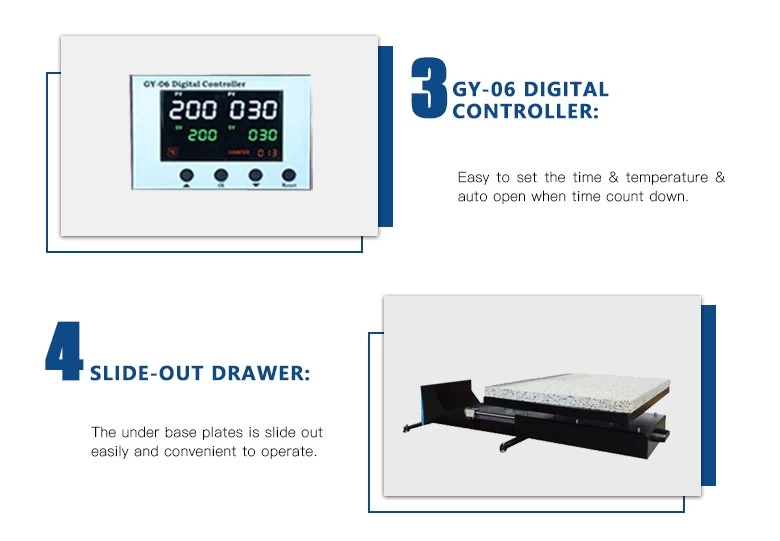

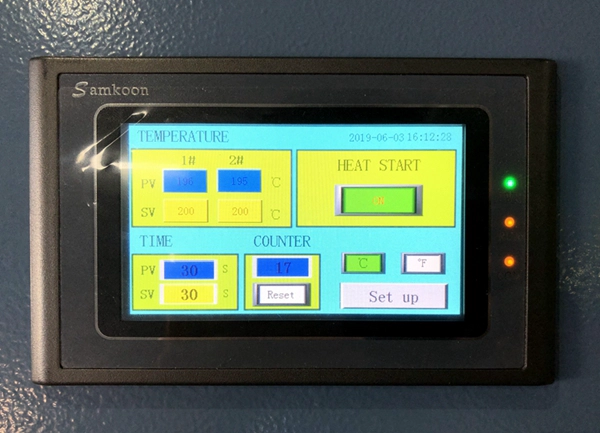

PLC Touch Screen Digital Control: The user-friendly digital control panel enables precise adjustments of time, temperature, and pressure settings, allowing you to customize the heat transfer process to suit different materials. |
 |
Slide-out Under Plate: The slide-out under plate design enhances convenience for material placement and ensures safety from heat during operation. |
 |
Pneumatic with 2 Cylinders: High pressure is supplied by compressed air, ensuring consistent and reproducible results for flawless transfers. |
 |
Air Filter: To adjust the pressure of APHD large heat press machine, easy to operate and maintenance. |
 |
Vertical Contact Pressure: The pneumatic head of the heat plate provides vertical contact pressure, facilitating flawless transferring of various materials without displacement effects. |

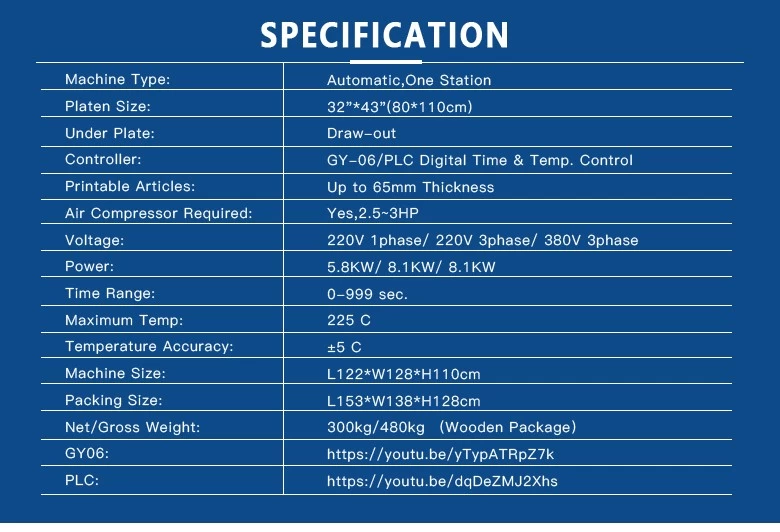

| Model No. | APHD-43P | ||
| Machine Type | Automatic, High Pressure | ||
| Platen Size | 32"x43" (80x110cm) | ||
| Under Plate | Draw-out | ||
| Controller | PLC Touch Screen Digital Control | ||
| Printable Articles | Up to 65 |
||
| Air Compressor Required | Yes | ||
| Voltage | 220V 1phase/ 220V 3phase/ 380V 3phase | ||
| Power | 5.1KW/ 7.5KW/ 7.5KW | ||
| |
0-999 sec. | ||
| Maximum Temp. | 225 C | ||
| Temperature Accuracy | ±5 C | ||
| Packing Size(cm) | 137x121x120cm | ||
| Gross Weight | 370kg (Wooden Package) | ||
The APHD Series Pneumatic Large Format Draw-out Heat Press is ideal for heat transferring onto large fabric pieces and metal photo panels, like Banners, sportsware, metal boards, cushions etc.
The APHD Series Pneumatic Large Format Draw-out Heat Press is well-packed in wooden package and provide with manual.
