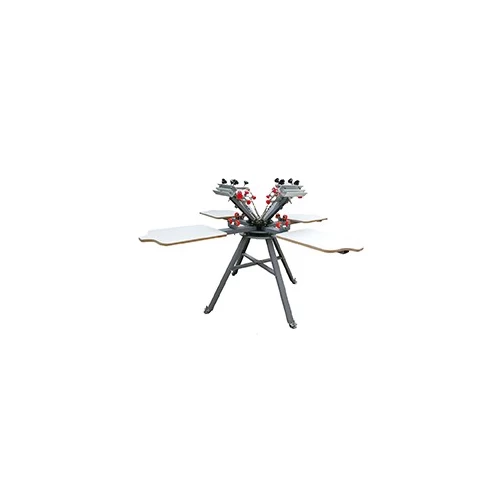

Manual 6 Color 6 Station Screen Printing Machine with Micro Registration

  • Model No.: MT-66MH
  • Color: 6 Color
  • Station: 6 Station
  • Plate Size: 450*550mm
  • Max. Frame Size: 500*600mm
  • Max. Image Size: 400*500mm
  • Net Weight: 155kg(345lb)
  • Packing Size: In 2 Wooden Case, 0.65 CBM in Total

The machine is 6 color 6 station screen printing machine, suitable for one or two people to use. Users just need to stand in one platen station to work, platen station and frame can rotate in 360 degree to station location, it don’t need the operator move to work.


1. Both shirtboard layer and screen layer can rotate independently
2. Smart micro registration device for printing multicolor precisely
3. Screens can be adjusted front,back,lefe right through micro microregistration
4. Aluminium screen clamps can be adjusted up and down horizontally, beautiful and pratical
5. All heads can be pressed down at same time,can print multicolor on multiple stations
6. Special design of spring device adjust tension for screen up and down
7. Double fix position device is an initiate design, makes color registration accurate
8. Detachable bracket facilitates interchange shirtboards
9. Bigger and thicker steel round plate, more stable when printing
10. Add the triangle support under pallet plate, 35mm diameter bigger axis
11. Heavy gauge all steel construction, electroplating coating, durable, no rust
12. Stands can be adjusted up and down, and be detachable for packing
13. Equipped with a full set of installation and maintenance tools and spare parts


 Modle No.  MT-66MH
 Color  6 Color
 Station  6 Station
 Plate Size  450*550mm
 Max. Frame Size  500*600mm
 Max. Image Size  400*500mm
 Net Weight  155kg(345lb)
 Packing Size  In 2 Wooden Case, 0.65 CBM in Total


Mainly used for T-shirt printing, also printed cloth and other products. Optional flash dryer, and the dryer place in the upside of printing station’s platen, drying the surface of material after printing for 3-5 seconds, then printing the next color, improve the work efficiency, two people operate (one people printing, one people place the T-shirt and drying platen, Fold the printed T-shirts) Printed four-color T shirt 200-250 pieces per hour.
