Ball Logo Printing Sports Ball Heat Press BP-10Ball Logo Printing Sports Ball Heat Press BP-10Ball Logo Printing Sports Ball Heat Press BP-10Ball Logo Printing Sports Ball Heat Press BP-10Ball Logo Printing Sports Ball Heat Press BP-10Ball Logo Printing Sports Ball Heat Press BP-10

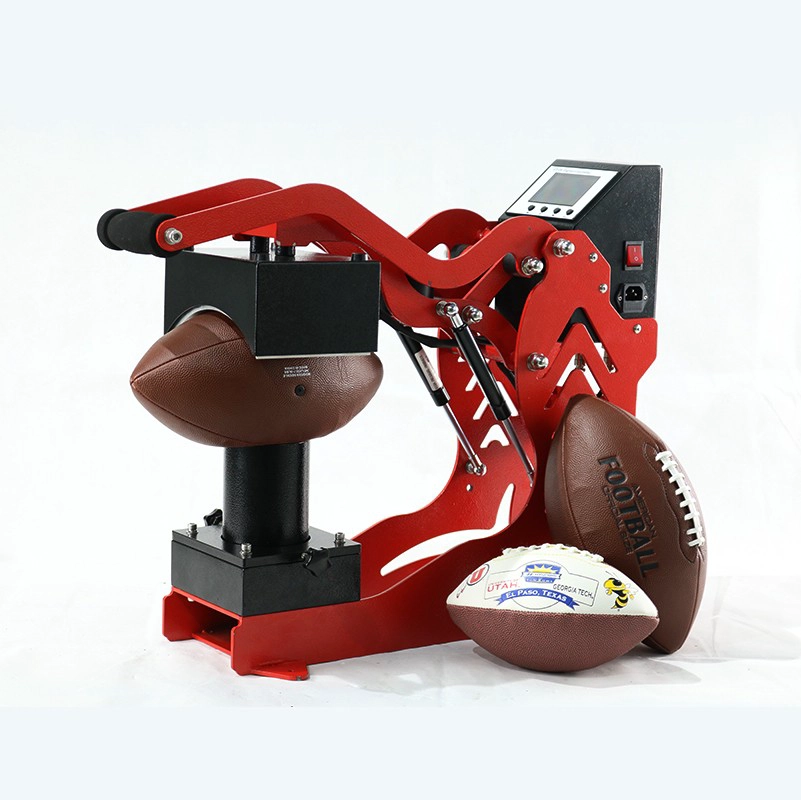

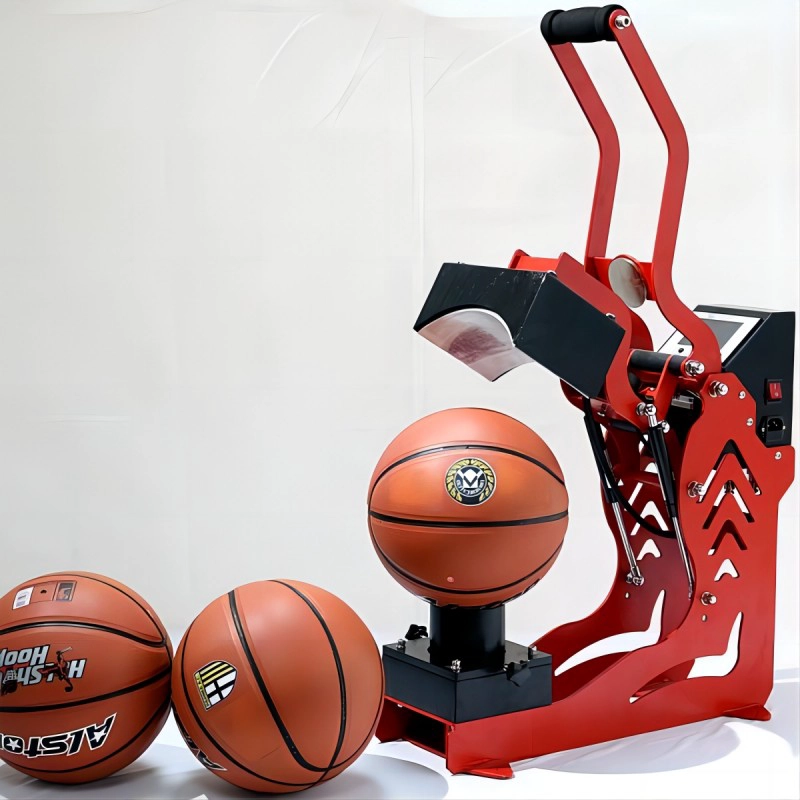

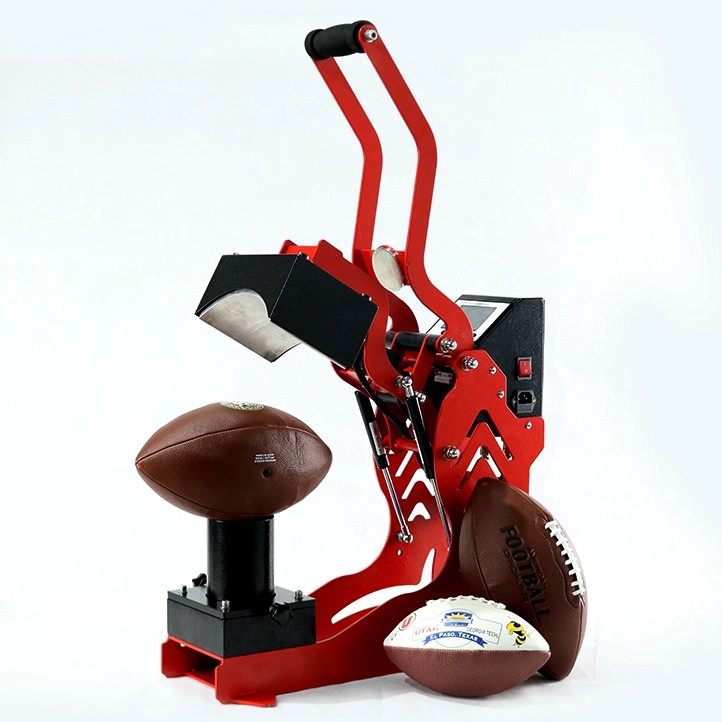

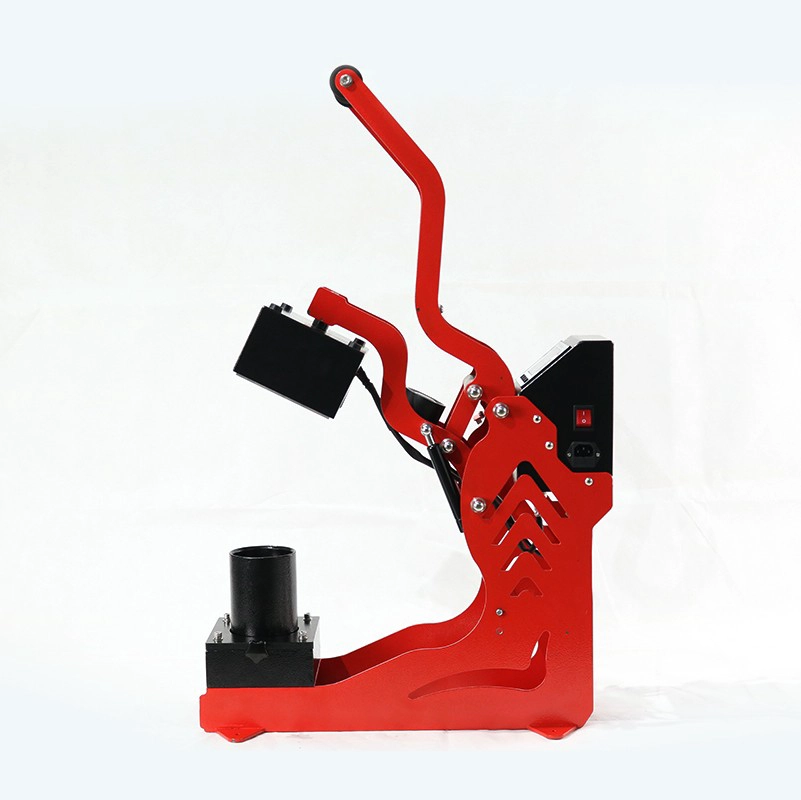

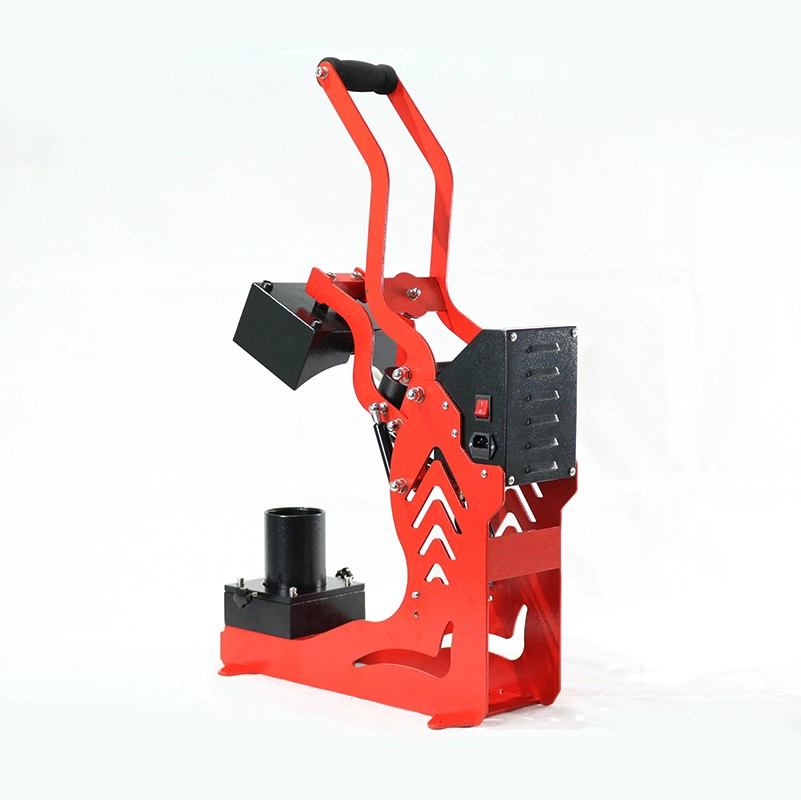

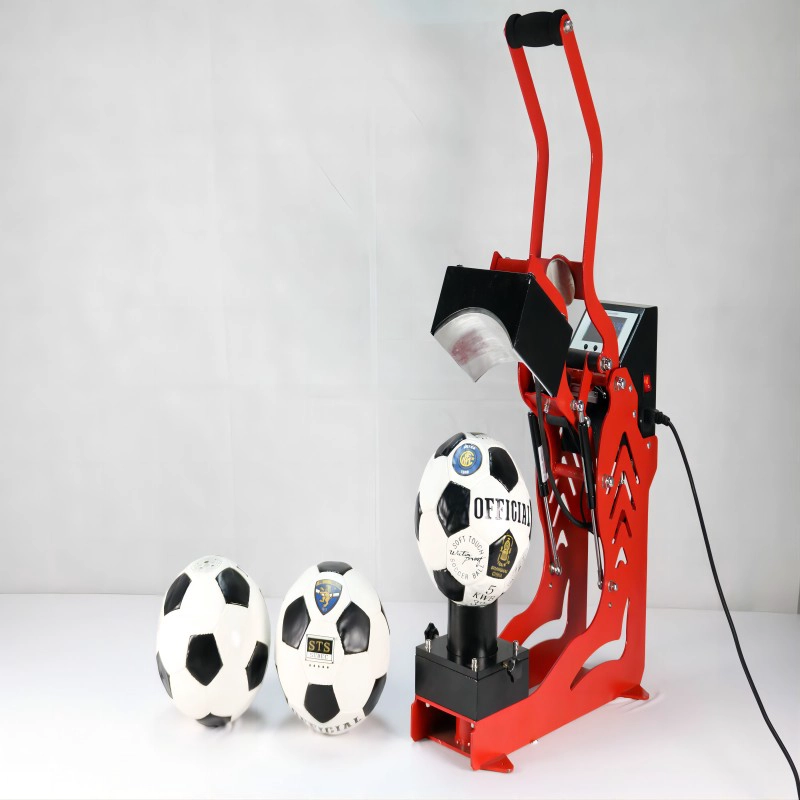

Ball Logo Printing Sports Ball Heat Press BP-10

  • Platen Size: 13X18cm
  • Controller: GY06 Digital Time & Temp. Control
  • Printable Articles: Synthetic Leather Sports Ball
  • Underplate: Adjustable Ball Cradle Holder
  • Gas Spring: 35kg*2pc
  • Opening Angle: 45 Degrees
  • Voltage: 110V/ 220V
  • Time Heating to 200℃: Around 5min
  • Print Ball Size:
  • Round ball: Φ18-25cm
  • (Football: 3#-5#, Basketball: 3#-7#)
  • Oval ball: Φ15-17cm (Rugby 6#-9#)
  • Maximum Print Area: 5x8cm
The Sports Ball Heat Press Machine is designed to easily customize or personalize inflatable sports balls. Use with printable heat transfer vinyl, you can transfer team logos, sponsor logos, corporate logos, player number, initials, etc, onto synthetic leather balls, like footballs, volleyballs, basketballs, soccer balls, decorate balls of various sizes.



 Model No.  BP-10
 Machine Type  Auto Open, Hobby
 Platen Size  13X18cm
 Controller  GY06 Digital Time & Temp. Control
 Printable Articles  Synthetic Leather Sports Ball
 Underplate  Adjustable Ball Cradle Holder
 Gas Spring  35kg*2pc
 Opening Angle  45 Degrees
 Voltage  110V/ 220V
 Time Heating to 200℃  Around 5min
 Print Ball Size  Round ball: Φ18-25cm (Football: 3#-5#, Basketball: 3#-7#) Oval ball: Φ15-17cm (Rugby 6#-9#)
 Maximum Print Area  5x8cm
 Power  360W
 Frequency  50hz/60hz, Currency 6A
 Time Range  0-999 Sec.
 Maximum Temp  225 C
 Temperature Accuracy  ±5℃
 Machine Size  618X241X503mm


GY-06 Advanced Digital Controller: Simple design and clear system. It is very easy for user to operate. Live digital time and temperature readout for accurate results every time                                        

Magnetic Auto-Open Release:The auto-open magnet allows the heat press open automatically while finished transfer


Adjustable Base:Adjustable ball cradle holds the sports ball, you can transfer various size of balls


High-quality Gas Spring:This gas spring makes the press machine open smoothly and safely
   Elegant Appearance :Laser cut design structure shows the beauty of mechanical design

Ball: Basketball, Football , Volleyball, Soccer
Transfer Material: Printable heat transfer vinyl for full color application





Microtec's main objective is to support all our customers, who can manage their heat transfer activities without interruption. So Microtec offers FREE SPARE PARTS with a quantitative order and the following guarantee:
* Free lifetime technical support on all heat press machines.
* Two-year warranty
* Five-year warranty on fusions and welds.
* Five-year warranty on the heating plate.
* Six-monthly warranty on the heaters of cups, plates and caps.
