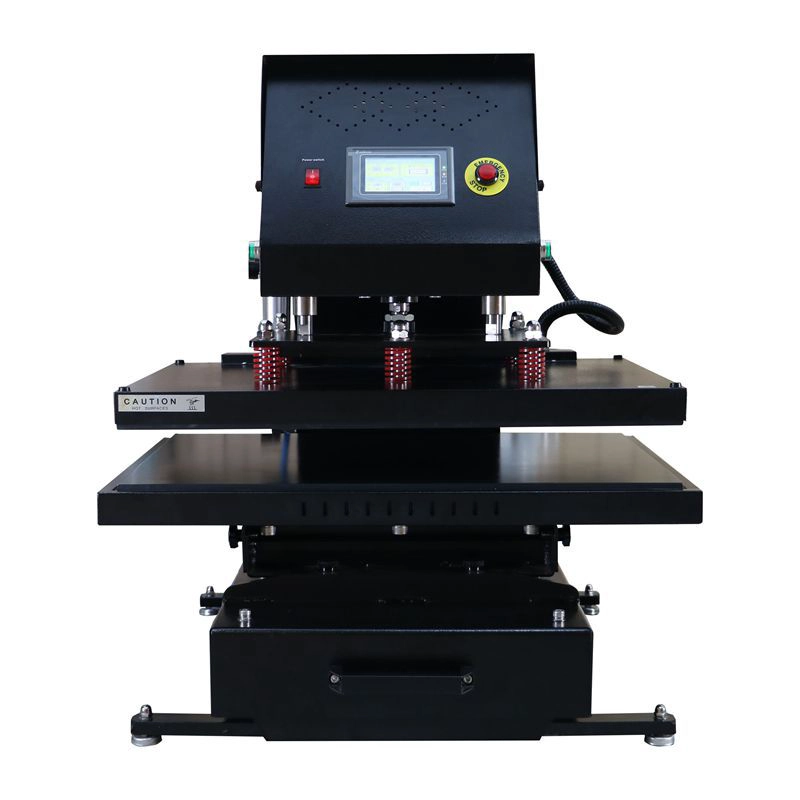

APHD-32S Pneumatic Large Heat Press 60x80cm with Dual Heating Platens

  • Model No.: APHD-32S
  • Machine Type: Automatic, High Pressure, Double Heat Platens
  • Platen Size: 2pcs 24"x32" (60x80cm) Heat Platen
  • Under Plate: Fully Slide-out
  • Controller: PLC Touch Screen Controller
  • Printable Articles: Up to 50mm Thickness
  • Voltage: 220V 1phase/ 220V 3phase/ 380V 3phase
  • Power: 12KW
  • Time Range: 0-999 sec.
  • Maximum Temp: 225 C
  • Packing Size: 135x120x120cm
  • Net Weight: 285kg
  • Gross Weight: 355kg (Wooden Package)
  • Product Details
  • Video
  • Warranty

Description

The APHD Series Pneumatic Large Format Draw-out Heat Press is one of Microtec's premier high-pressure heat press machines, renowned for its efficiency and versatility. Specifically designed for large-scale production.

The APHD-32S heat press features dual heating plates, one at the top and one at the bottom, providing even heat distribution and ensuring excellent heat transfer. The pneumatic operation is powered by compressed air, ensuring consistent, reproducible and perfect transfers on a wide range of materials without displacement effects. The slide-out bed feature increases ease of use and ensures safety during material placement.

The APHD large heat press is specifically designed for heat transferring onto aluminum boards, wood, garments, and other raw materials. Stringent quality and safety standards are maintained, with CE certification and UL certifications for spare parts, providing assurance of the machine's reliability and adherence to industry standards.

Features

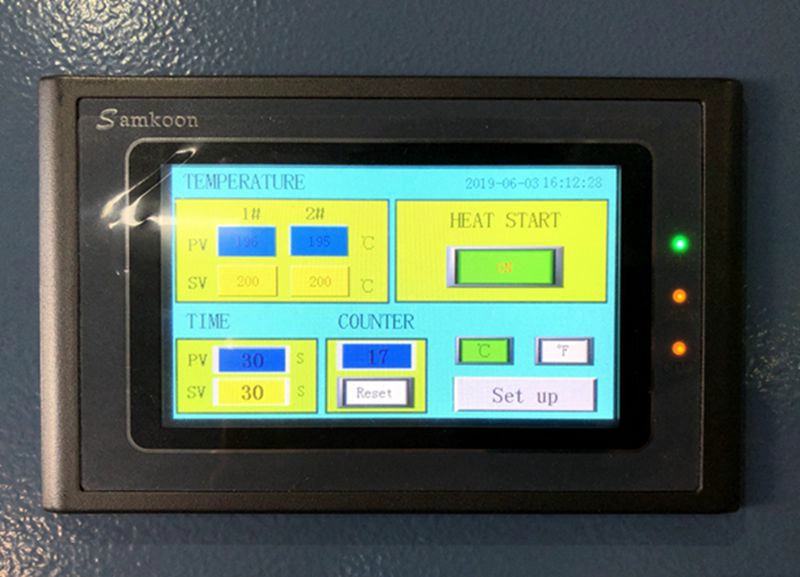

PLC Touch Screen Digital Control: The user-friendly digital control panel enables precise adjustments of time, temperature, and pressure settings, allowing you to customize the heat transfer process to suit different materials.

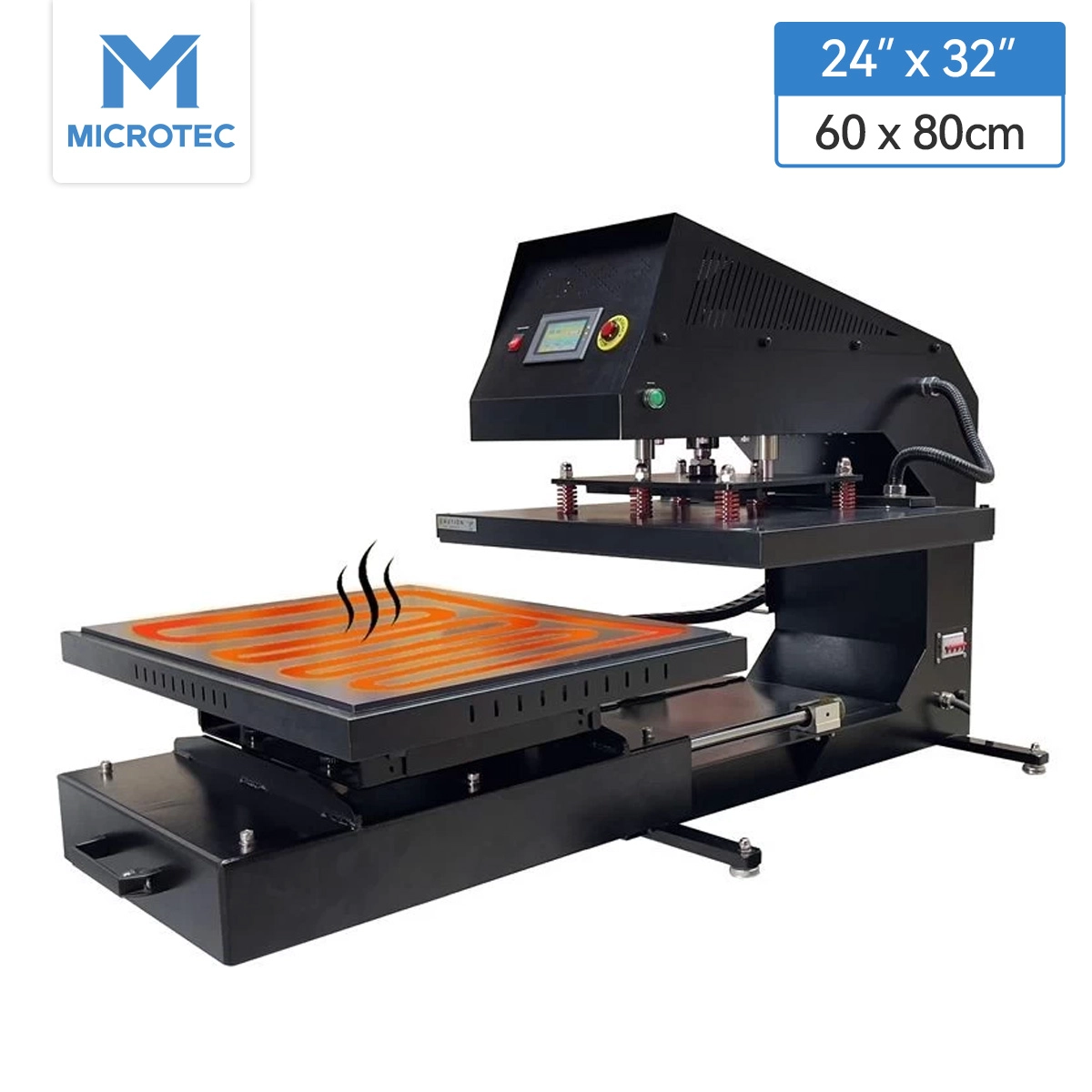

Slide-out Under Plate: The slide-out under plate design enhances conveniencefor material placement and ensures safety from heat during operation.

Upper & Lower Heating Platen: The dual heating plates provide heat, and the smooth surface of the PTFE coating ensures more uniform transfer temperatures

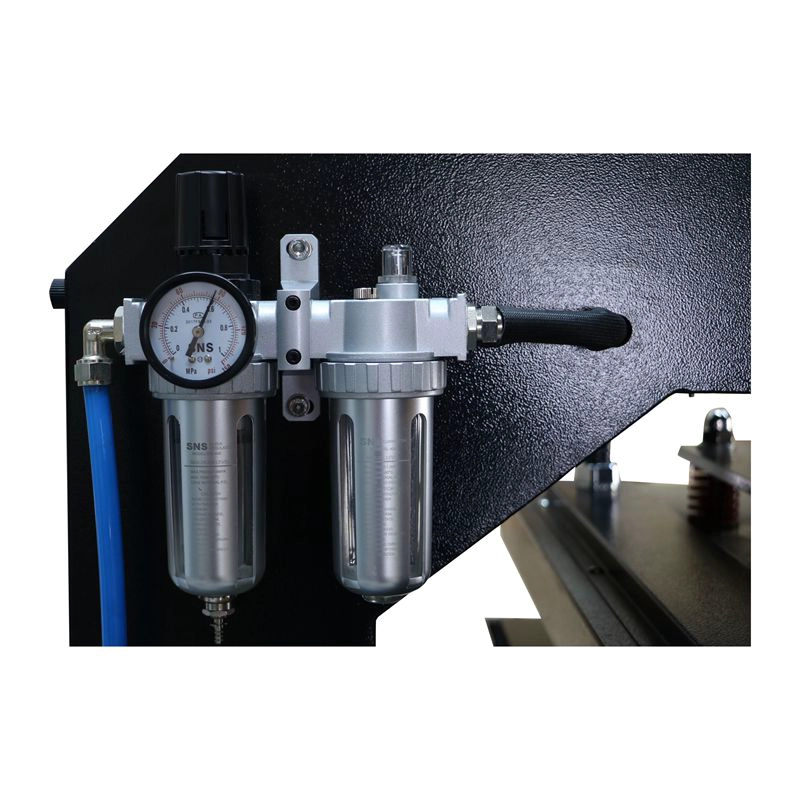

Air Filter: To adjust the pressure of APHD large heat press machine, easy to operate and maintenance.

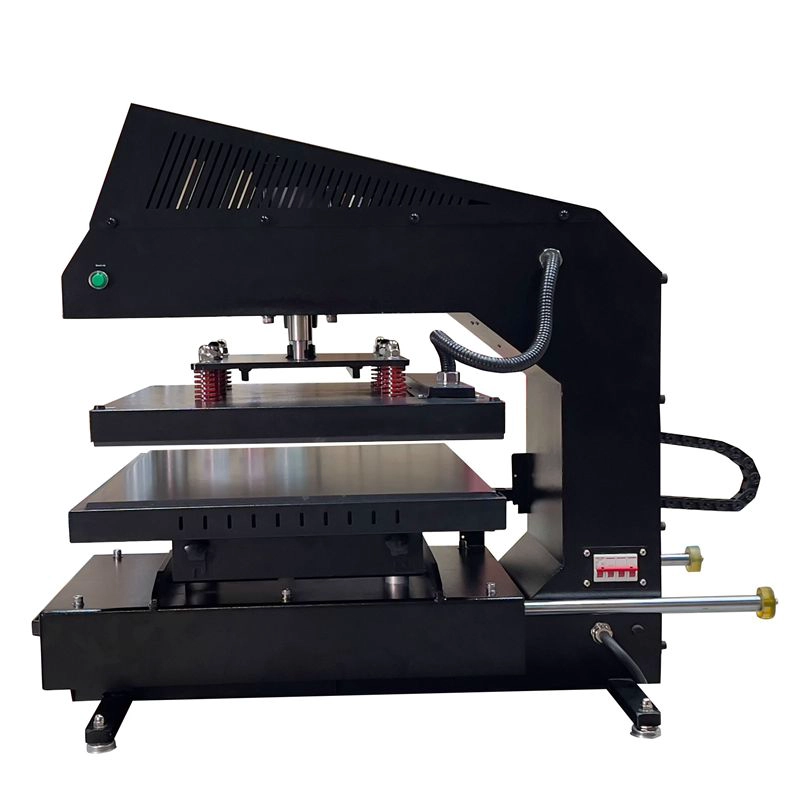

Vertical Contact Pressure: The pneumatic head of the heat plate provides vertical contact pressure, facilitating flawless transferring of various materials without displacement effects.




Specification

Model No.: APHD-32S
Machine Type: Automatic, High Pressure, Double Heat Platens
Platen Size: 2pcs 24"x32" (60x80cm) Heat Platen
Under Plate: Fully Slide-out
Controller: PLC Touch Screen Controller
Printable Articles: Up to 50mm Thickness
Voltage: 220V 1phase/ 220V 3phase/ 380V 3phase
Power: 12KW
Time Range: 0-999 sec.
Maximum Temp: 225 C
Packing Size: 135x120x120cm
Net Weight: 285kg
Gross Weight: 355kg (Wooden Package)

Application

The APHD Series Pneumatic Large Format Draw-out Heat Press is ideal for heat transferring onto large fabric pieces and metal photo panels, like Banners, sportsware, metal boards, cushions etc.

Machine Warranty

Microtec's Commitment to Customer Support

At Microtec, our primary goal is to ensure that our customers can carry out heat transfer activities seamlessly. To support this, we offer FREE SPARE PARTS with qualifying orders, alongside the following comprehensive guarantees:

  • Lifetime Technical Support for all heat press machines.
  • Two-Year Warranty on the machine.
  • Five-Year Warranty on fusions and welds.
  • Five-Year Warranty on the heating plate.
  • Six-Month Warranty on heaters for cups, plates, and caps.

We are dedicated to providing long-term reliability and peace of mind for your heat transfer operations.
