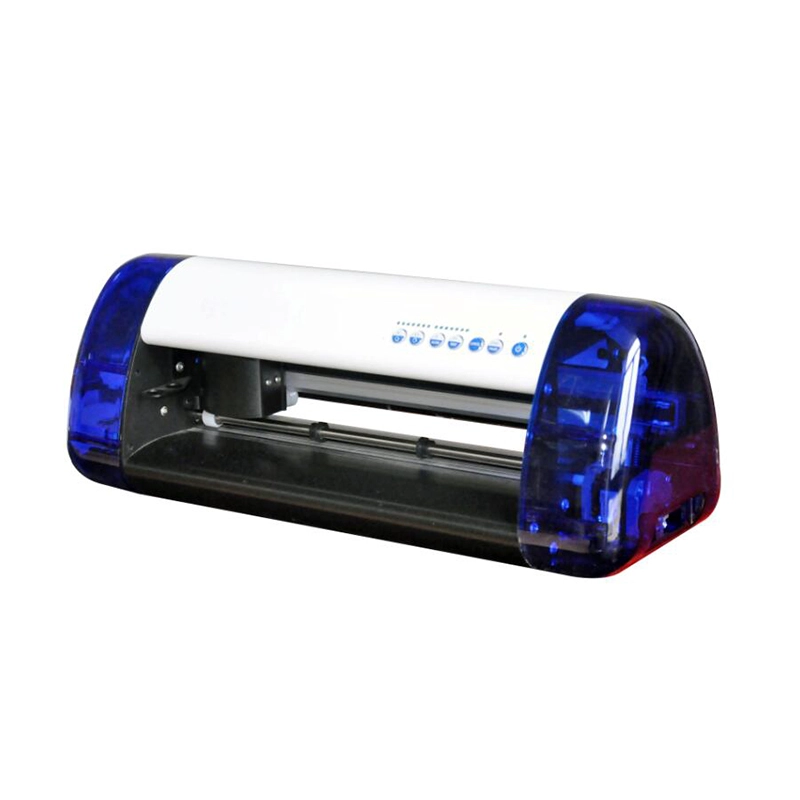

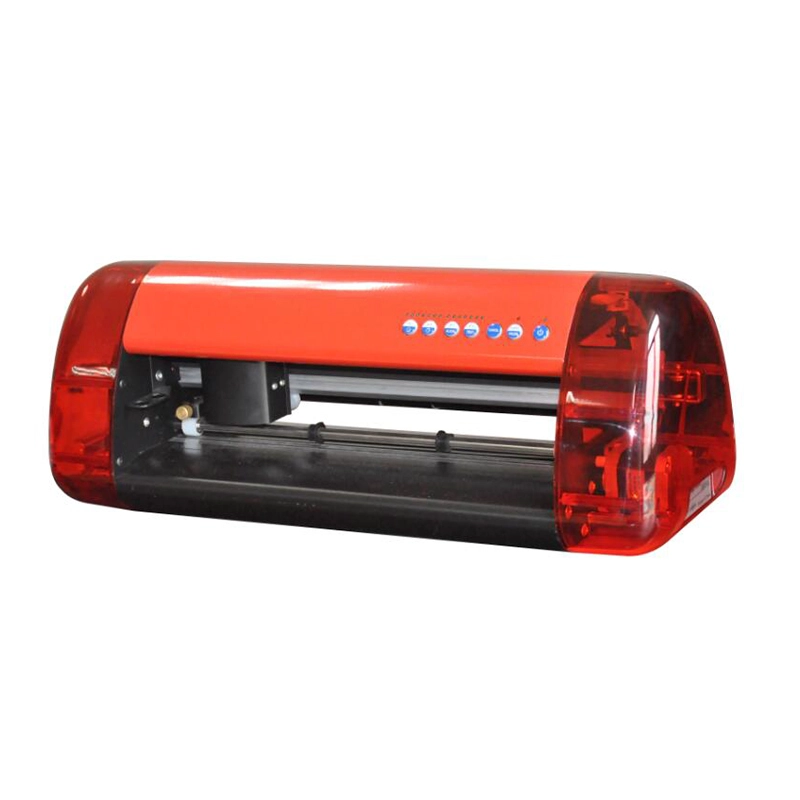

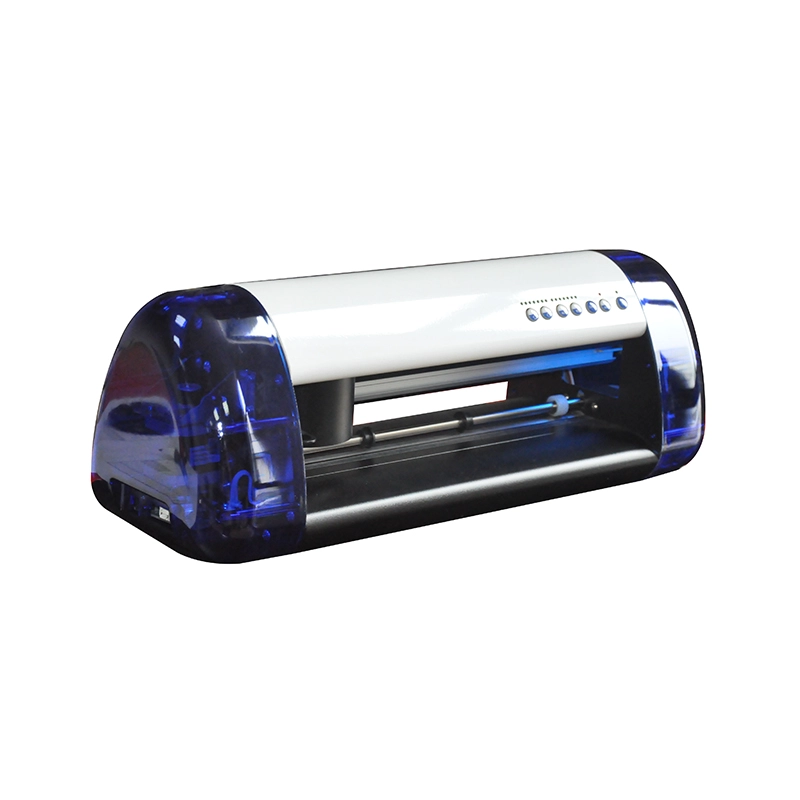

Mini Cutting Plotter--MT-330

Mini Cutting Plotter--MT-330

  • Technical Parameter:
  • Max.cutting range(mm): 290*2000
  • Material width: A3 size
  • N.W/G.W(kg): 6.0/7.0
  • Measurement(mm):590*260*350
  • Available material: PVC or lactoprene sheet
  • drawing paper, postcard, photo paper,etc.
  • Power supply: AC100V -240V
MT-330 is a mini cutting machine placed on table, it can cut paper or plastic slice according to the pattern designed in computer; it has laser positioning device, which can accomplish cutting the outline sketch of the printed graphs.
It can cut vinyl, non-dried glue labels, card papers, and film papers. It is used to make paper models, joined graphs, stereo congratulation cards, and name cards, cartoon stamps, etc.
It is delicate and cabinet, much appropriately used in stores, offices, schools and families, especially in Europe and America countries, many families buy it to help their children to enhance their intellectual faculties.
Operation environment:
Temperature: 5 - 30 degrees
Relative humidity: 35%-80%
without condensation
Cutting force: 60g to 350g
Cutting speed: 10 to 200mm/s
Configuration: Grit-rolling
Interface: USB1.0 or RS232
Drive system: Stepping motor
