Describe
Model No.: MAG-32 / MAG-40

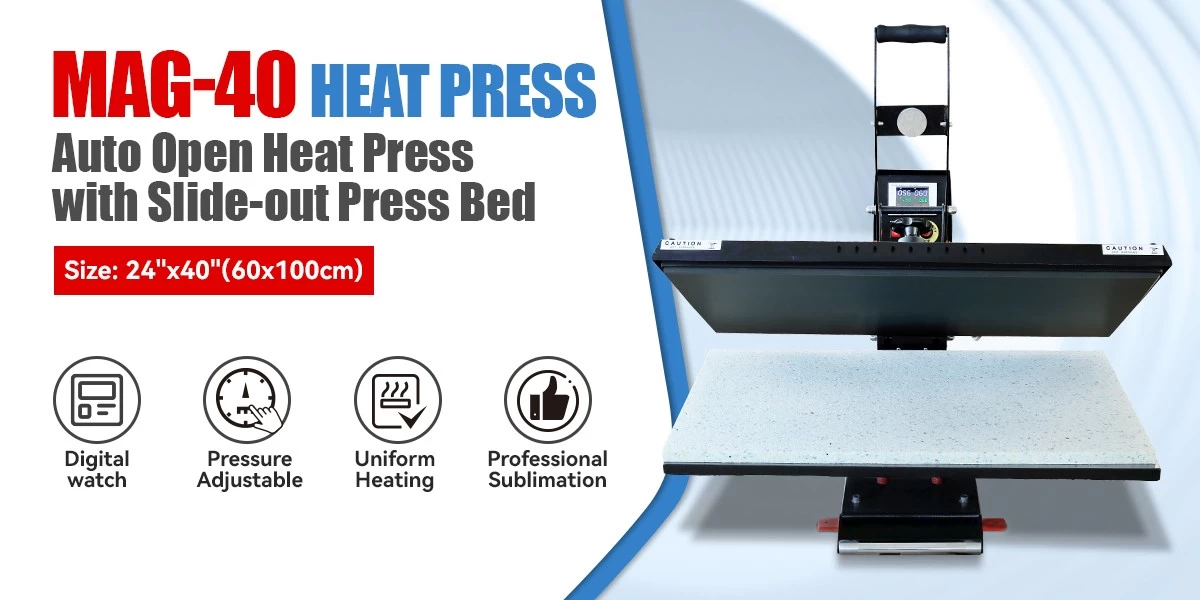

The MAG-40 Large Auto Open Heat Press is a top-tier heat transfer machine, designed for large-format applications. With a variety of features aimed at boosting productivity, the MAG-40 is perfect for professionals working with a range of materials like fabric, metal sheets, tiles, and more. Its robust design and advanced features make it a versatile addition to any sublimation workshop.
Key Features
24"x40" (60x100cm) – Ideal for handling large materials such as fabric pieces, sublimation metal sheets, and oversized items.
24"x32" (60x80cm) – Offers a more compact solution while still supporting large-format materials.
-
Choose from two platen size options:
-
Auto Release Mechanism:
The MAG-40 features an auto-open design, which automatically releases the platen after a set time, ensuring consistent, hassle-free operation and improved workflow efficiency.
-
GY-06 Digital Controller:
This intuitive, digital controller simplifies setup, allowing for precise control of time and temperature during the transfer process. The user-friendly interface ensures smooth operation, even for beginners.
-

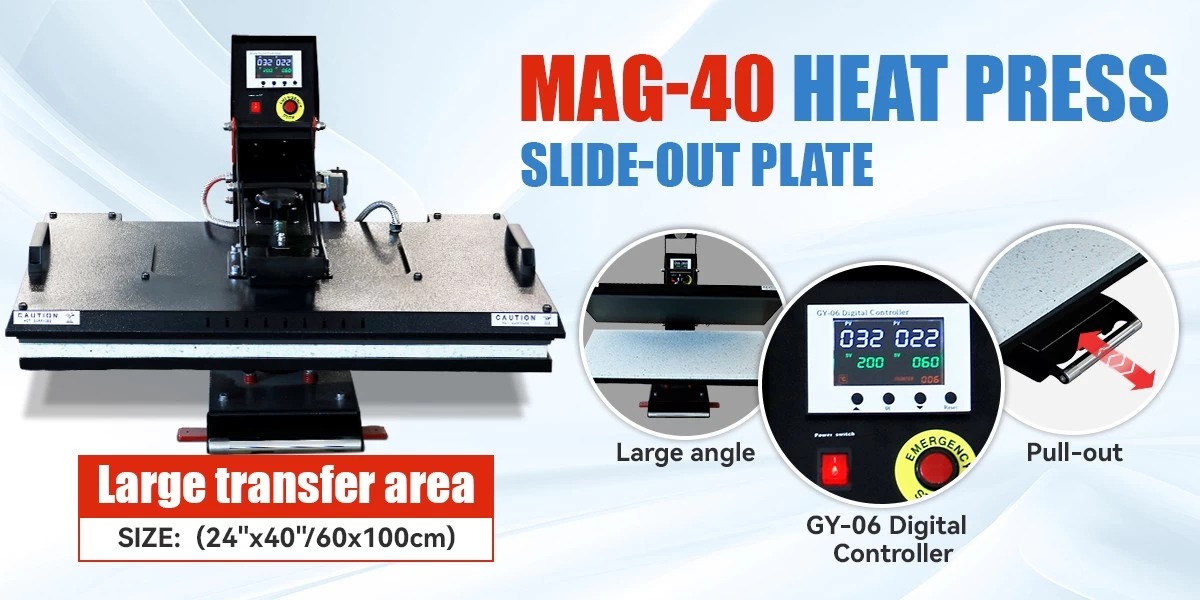

Draw-out Under Platen:
The MAG-40 comes equipped with a strong handle that allows the under platen to be drawn out, providing ease of material placement and reducing the risk of burns or accidents.
-
Emergency Stop Switch:
An emergency stop switch is included for added safety, enabling users to halt the operation immediately in case of an emergency.
-
Versatile Applications:
From apparel to promotional items, the MAG-40 is ideal for sublimating a wide variety of materials, including shirts, jackets, mouse pads, tiles, metal sheets, and more. It can handle materials up to 30mm thick.
Specifications
-
Machine Type: Auto Release, Clamshell
-
Platen Size:
-
24"x40" (60x100cm)
-
24"x32" (60x80cm)
-
Under Plate: Draw-out & Quick Exchangeable
-
Controller: GY-06 Digital Time & Temperature Control
-
Printable Articles: Up to 30mm Thickness
-
Voltage: 120V/220V
-
Power: 1.8KW/3.6KW
-
Time Range: 0-999 sec
-
Max Temperature: 225°C
-
Packing Size (MAG-40): 121x112x97cm
-
Gross Weight (MAG-40): 216kg
Quality Assurance
Each MAG-40 heat press undergoes stringent testing to ensure high performance and reliability. The machine is tested by heating it to 200°C and maintaining that temperature for at least 20 minutes. The individually tested copper-coated heating rods are cast in aluminum alloy or mica sheet, offering rapid heat-up times, efficiency, and long-lasting durability.
Machine Warranty
Microtec's Commitment to Customer Support
At Microtec, our primary goal is to ensure that our customers can carry out heat transfer activities seamlessly. To support this, we offer FREE SPARE PARTS with qualifying orders, alongside the following comprehensive guarantees:
- Lifetime Technical Support for all heat press machines.
- Two-Year Warranty on the machine.
- Five-Year Warranty on fusions and welds.
- Five-Year Warranty on the heating plate.
- Six-Month Warranty on heaters for cups, plates, and caps.
We are dedicated to providing long-term reliability and peace of mind for your heat transfer operations.
